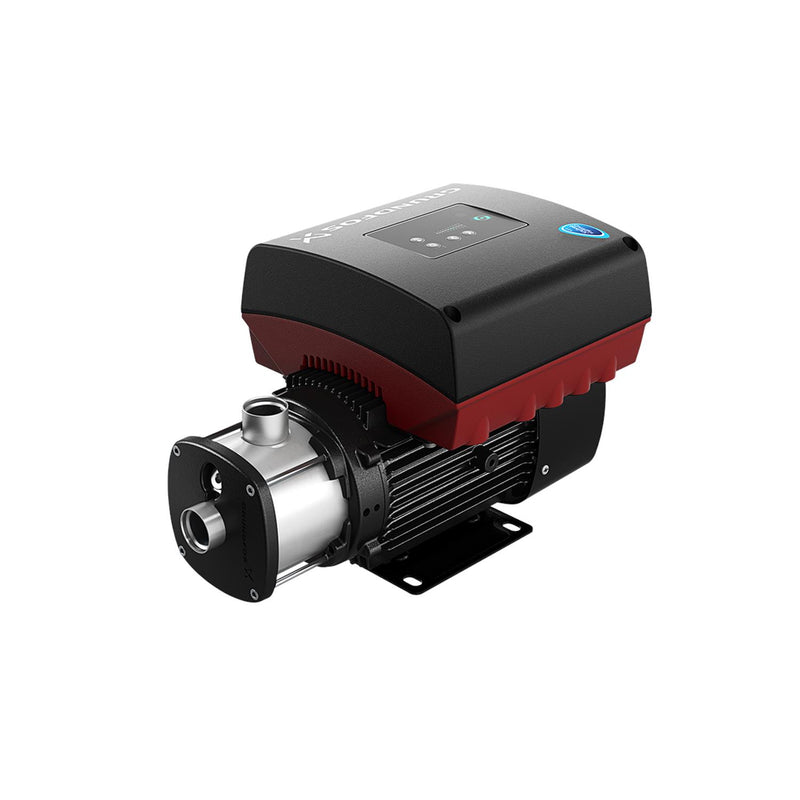

Grundfos 98394752 - CME 1-2 A-R-I-E-AVBE U-A-D-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98394752

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98394752 - CME 1-2 A-R-I-E-AVBE U-A-D-N

The Grundfos 98394752 - CME 1-2 A-R-I-E-AVBE U-A-D-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for both single and multi-stage pumping needs.

As a part of the Grundfos Centrifugal Pumps range, the CME series is known for its robust construction and versatility. Whether you require a booster pump or a close-coupled solution, the CME 1-2 A-R-I-E-AVBE U-A-D-N is designed to meet your specific requirements.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494277537
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71A
Frequency converter Built-in
Gross weight 39.2 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 / 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard IEC
Net weight 31.5 lb
Outlet position 12
Product family CME
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.45-2.90 A
Rated flow 8.98 US gpm
Rated head 59.09 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size 71A
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

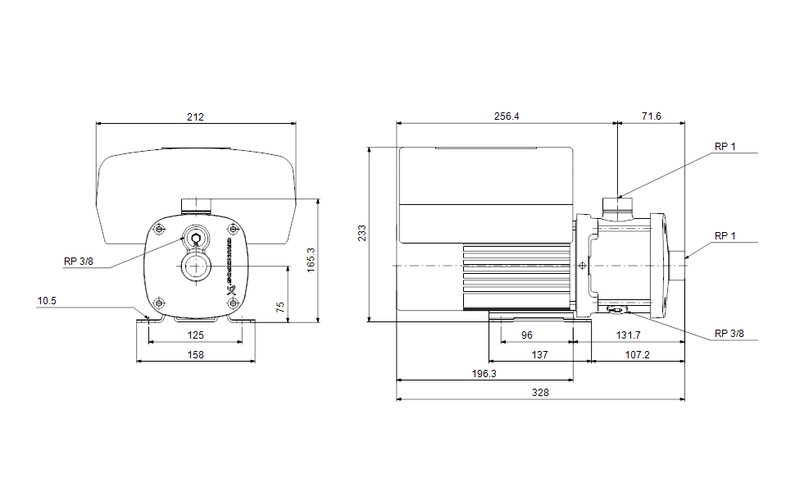

Dimensional Drawing

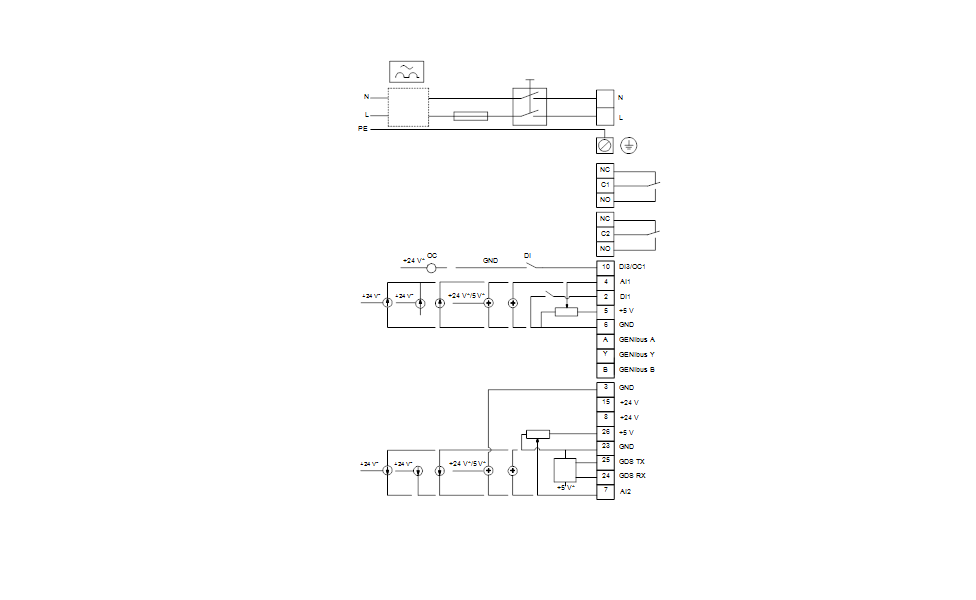

DWiring Diagram
