Grundfos 99503873 - CMBE TWIN 3-51 I-X-C-B-D-G | Booster

Save $2,693.00
GrundfosSKU: 99503873

Price:
Sale price$9,335.00 Regular price$12,028.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CMBE TWIN 3-51 I-X-C-B-D-G · Horizontal Multistage End-Suction Pump — Variable Speed
CMBE1HP115V1.0-Phase60 HzIP55Stainless steel

The Grundfos 99503873 (CMBE TWIN 3-51 I-X-C-B-D-G) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with built-in electronics for pressure boosting. Nominal performance: 37US gpm at 105ft. Rated 115V, 1.0-Phase, 60 Hz. Applications include Plumbing: Pressure Boosting, Residential water pressure boosting.

Power
1HP
Voltage
115V
Phase
1.0-Phase
Max Flow
37US gpm
Max Head
105ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CMBE TWIN 3-51 I-X-C-B-D-G
Series: CMBE
Model Code: CMBE TWIN 3-51 I-X-C-B-D-G
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQE
Flange Rating: PN 10
Technical Specifications
Model Number 99503873
Product Series CMBE
Series Description Horizontal Multistage End-Suction Pump — Variable Speed
Power 1HP
Voltage 115V
Phase 1.0-Phase
Frequency 60 Hz
Pump Speed 3780rpm
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 37US gpm
Nominal Head 105ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 140°F
Max Ambient Temperature 104°F
Inlet Connection NPT 1 1/2
Outlet Connection NPT 1 1/2
Pipe Pressure Rating PN 10
Pipe Standard INTERNAL NPT THREAD
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal AQQE
Approvals / Certifications cULus
Applications
Plumbing: Pressure Boosting
Residential water pressure boosting
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CMBE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CMBE Series
✓ Product Data Sheet — CMBE TWIN 3-51 I-X-C-B-D-G
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals cULus
Approvals for drinking water CULUS DW NSF61
Code for rubber EPDM
Code for shaft seal AQQE
Config. file no 99442909
Connection PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frequency 60 Hz
Frequency converter Product name:CMBE TWIN 3-51 I-X-C-B-D-G
Gross weight 231.0 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length of cable 4.92 ft
Liquid max temp 140°F
Liquid temperature range 32 .. 140 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Model A
n rpm F
Net weight 123.0 lb
Number of pumps 2
P2 kW 1 HP
Phase 1
Pipe connection Product name:CMBE TWIN 3-51 I-X-C-B-D-G
Pipe connection standard INTERNAL NPT THREAD
Power plug FUSE
Pressure rating for connection PN 10
Pump housing Stainless steel
Pump inlet NPT 1 1/2
Pump outlet NPT 1 1/2
Pumped liquid Water
Rated flow 37 US gpm
Rated head 105 ft
Rated power - P2 1 HP
Rated voltage 1 x 115 V
Rubber EPDM
Sales region Namreg
Selected liquid temperature 68 °F
Shaft Product name:CMBE TWIN 3-51 I-X-C-B-D-G
Shaft seal AQQE
Standard INTERNAL NPT THREAD
Start pressure Integrated Frequency converter
Tank volume 1.057 gal
Type CMBE 3-51

Motor Curves

Dimensional Drawing

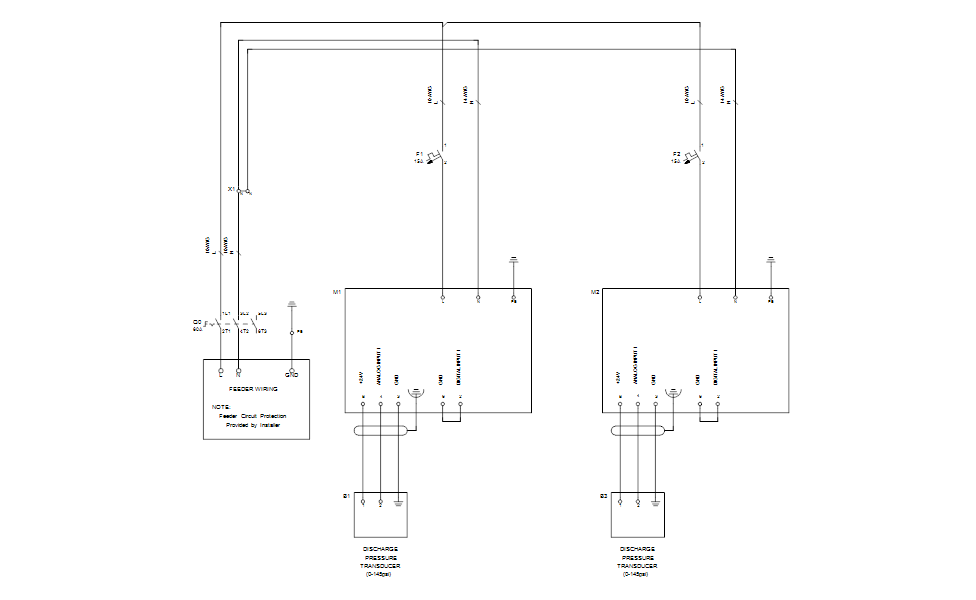

DWiring Diagram
