Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CMBE 5-62 I-U-A-E-D-F · Horizontal Multistage End-Suction Pump — Variable Speed
The Grundfos 98548116 (CMBE 5-62 I-U-A-E-D-F) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with built-in electronics for pressure boosting. Nominal performance: 26.4US gpm at 156.8ft. Rated 200-240V, 1-Phase, 60 Hz. Applications include Residential rainwater harvesting.
Power
2HP
Voltage
200-240V
Phase
1-Phase
Max Flow
26.4US gpm
Max Head
156.8ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — CMBE 5-62 I-U-A-E-D-F
Series: CMBE
Model Code: CMBE 5-62 I-U-A-E-D-F
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQE
Flange Rating: PN 10
Technical Specifications
| Model Number | 98548116 |
| Product Series | CMBE |
| Series Description | Horizontal Multistage End-Suction Pump — Variable Speed |
| Power | 2HP |
| Voltage | 200-240V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 3868rpm |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 26.4US gpm |
| Nominal Head | 156.8ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 140°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1 1/4 |
| Outlet Connection | 1 |
| Pipe Pressure Rating | PN 10 |
| Pipe Standard | ISO 228-1 |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | AQQE |
| Approvals / Certifications | cULus |
Applications
Residential rainwater harvesting
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 140°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CMBE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CMBE Series
✓ Product Data Sheet — CMBE 5-62 I-U-A-E-D-F
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- Approvals
- cULus
- Approvals for drinking water
- CULUS DW NSF61
- Code for rubber
- EPDM
- Code for shaft seal
- AQQE
- Config. file no
- 98499013
- Connection
- PN 10
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Frequency
- 60 Hz
- Frequency converter
- Built-in
- Gross weight
- 62.9 lb
- Housing
- Stainless steel
- I MAX
- 9,10-7,60A
- Impeller
- Stainless steel
- Impellers
- 4
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP55
- Length of cable
- NO CABLE m
- Liquid max temp
- 140°F
- Liquid temperature range
- 32 .. 140 °F
- Maximum ambient temperature
- 131 °F
- Maximum current consumption
- 9.10-7.60 A
- Maximum operating pressure
- 145.04 psi
- Model
- A
- n rpm
- F
- Net weight
- 41.4 lb
- P2 kW
- 2 HP
- Phase
- 1
- Pipe connection
- Product name:CMBE 5-62 I-U-A-E-D-F
- Pipe connection standard
- ISO 228-1
- Power plug
- No plug
- Pressure rating for connection
- PN 10
- Pump housing
- Stainless steel
- Pumped liquid
- Water
- Rated flow
- 26.4 US gpm
- Rated head
- 156.8 ft
- Rated power - P2
- 2 HP
- Rated speed
- 360-4000 rpm
- Rated voltage
- 1 x 200-240 V
- Return valve
- YES
- Rubber
- EPDM
- Sales region
- Namreg
- Selected liquid temperature
- 68 °F
- Shaft
- Product name:CMBE 5-62 I-U-A-E-D-F
- Shaft seal
- AQQE
- Size of inlet connection
- 1.25
- Size of outlet connection
- 1
- Standard
- ISO 228-1
- Start pressure
- Integrated Frequency converter
- Tank volume
- 0.528 gal
- Type of inlet connection
- NPT(M)
- Type of outlet connection
- NPT(F)
- Valve
- YES
Dimensional Drawing

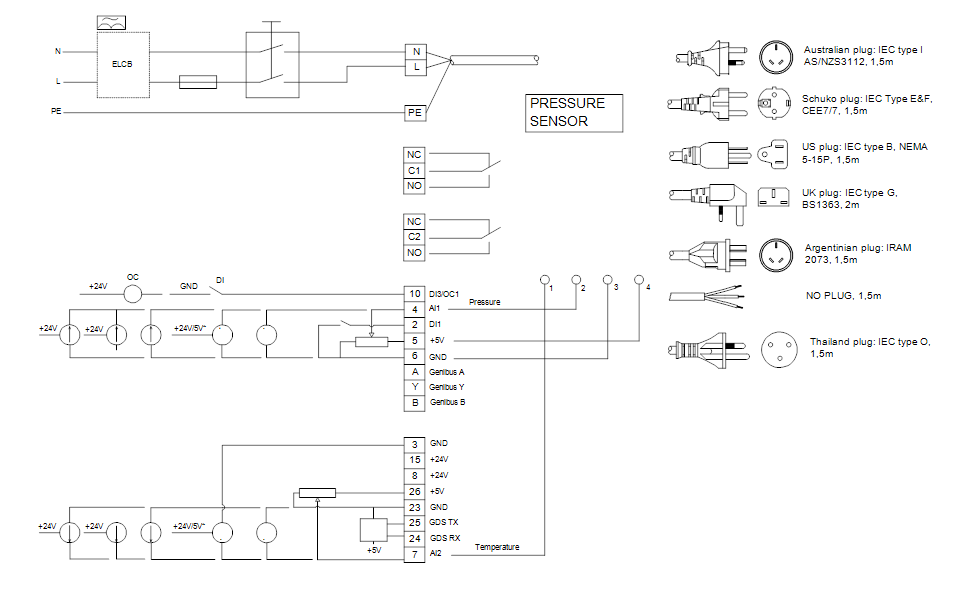

Wiring Diagram
