Grundfos 98548115 - CMBE 5-31 I-U-A-E-D-F | Horizontal | End Suction | Centrifugal

Save $2,259.70
GRUNDFOSSKU: 98548115

Price:
Sale price$3,699.30 Regular price$5,959.00
Non stocked producttypically available in 95 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98548115 - CMBE 5-31 I-U-A-E-D-F This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Approvals cULus
Approvals for drinking water CULUS DW NSF61
Code for rubber EPDM
Code for shaft seal AQQE
Config. file no 98499010
Connection PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frequency 60 Hz
Frequency converter Built-in
Gross weight 58.9 lb
Housing Stainless steel
I MAX 6,70-5,60A
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length of cable NO CABLE m
Liquid max temp 140°F
Liquid temperature range 32 .. 140 °F
Maximum ambient temperature 122 °F
Maximum current consumption 6.70-5.60 A
Maximum operating pressure 145.04 psi
Model A
n rpm F
Net weight 37.4 lb
P2 kW 1.5 HP
Phase 1
Pipe connection Product name:CMBE 5-31 I-U-A-E-D-F
Pipe connection standard ANSI B1.20.1
Power plug No plug
Pressure rating for connection PN 10
Pump housing Stainless steel
Pumped liquid Water
Rated flow 26.9 US gpm
Rated head 84.98 ft
Rated power - P2 1.5 HP
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Return valve YES
Rubber EPDM
Sales region Namreg
Selected liquid temperature 68 °F
Shaft Product name:CMBE 5-31 I-U-A-E-D-F
Shaft seal AQQE
Size of inlet connection 1.25
Size of outlet connection 1
Standard ANSI B1.20.1
Start pressure Integrated Frequency converter
Tank volume 0.528 gal
Type of inlet connection NPT(M)
Type of outlet connection NPT(F)
Valve YES

Motor Curves

Dimensional Drawing

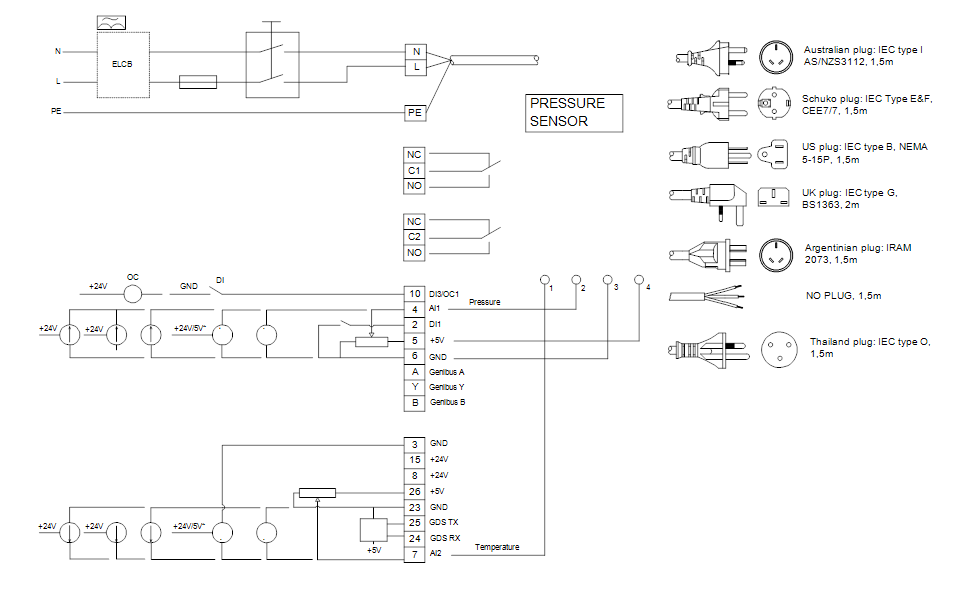

DWiring Diagram
