Description

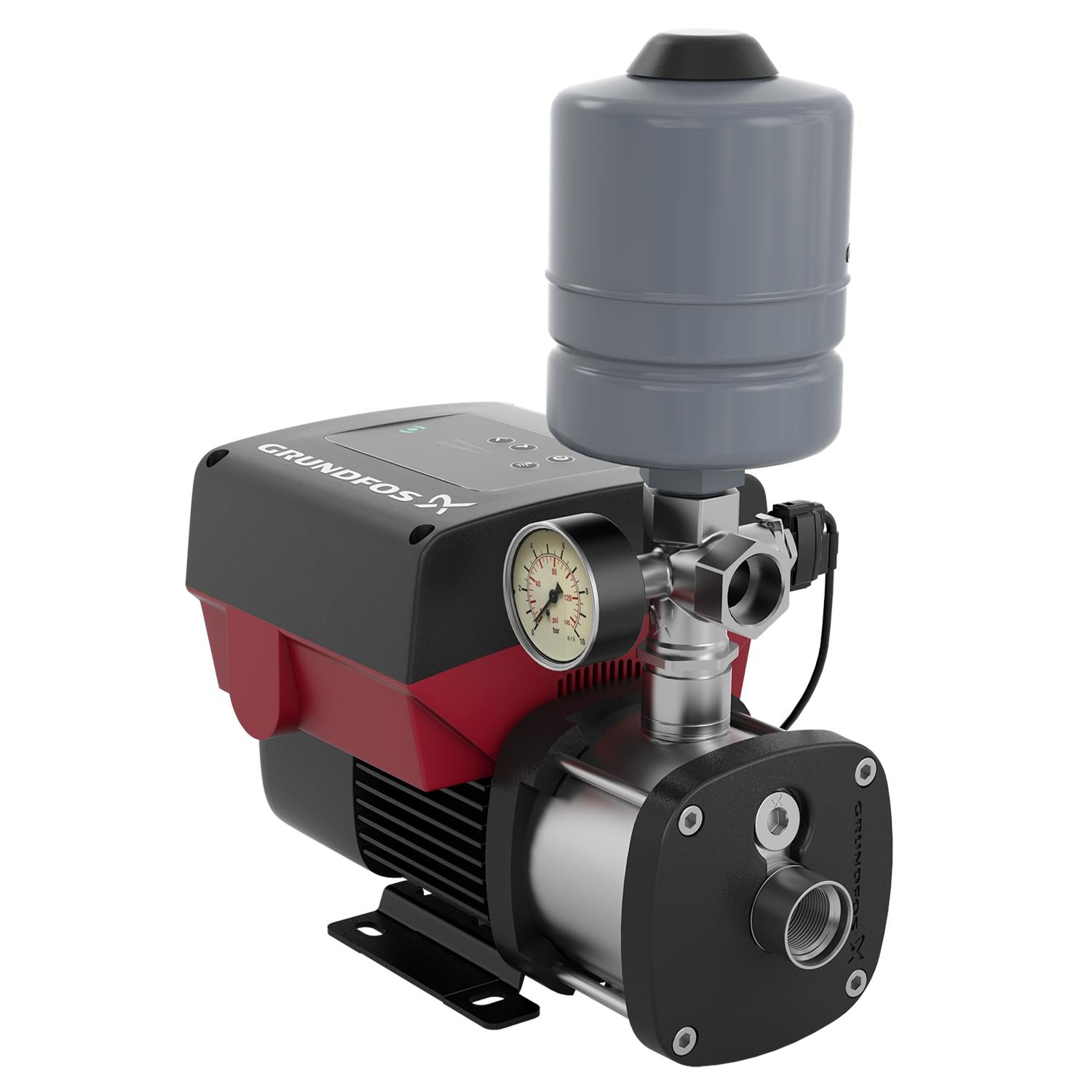

The Grundfos 98374693 (CMBE 3-62 I-U-C-D-D-A) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with built-in electronics for pressure boosting. Nominal performance: 18.5US gpm at 148.3ft. Rated 200-240V, 1-Phase, 60 Hz. Applications include Residential rainwater harvesting.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98374693 |
| Product Series | CMBE |
| Series Description | Horizontal Multistage End-Suction Pump — Variable Speed |
| Power | 1.5HP |
| Voltage | 200-240V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 3780rpm |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 18.5US gpm |
| Nominal Head | 148.3ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 140°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1 |
| Outlet Connection | 1 |
| Pipe Pressure Rating | PN 10 |
| Pipe Standard | ISO 228-1 |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | AVBE |
| Approvals / Certifications | CE, EAC, CN ROHS EXE, MORO, UKCA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 140°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CMBE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5711493909330
- Applications
- Domestic water supply, Pressure boosting
- Density
- 62.29 lb/ft³
- Gross weight
- 59.5 lb
- Liquid temperature range
- 32 .. 140 °F
- Material Pricing Group
- 9
- Max. capacity 2
- ,
- Maximum ambient temperature
- 131 °F
- Net weight
- 37.4 lb
- Product family
- CMBE
- Rated flow
- 18.5 US gpm
- Rated head
- 148.3 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
