Grundfos 99377462 - CM 5-8 A-S-I-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99377462

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos 99377462 — CM 5-8 A-S-I-V-AQQV H-A-A-N — is a horizontal, end-suction centrifugal pump designed for industrial fluid transfer and booster duties. It suits technicians and facility maintenance teams needing reliable, compact pumping equipment.

Key features

  • Manufactured by Grundfos for various industrial applications, ensuring consistent build quality
  • CM series centrifugal design suitable for single- and multi-stage installations
  • Horizontal end-suction configuration provides compact footprint and straightforward serviceability

Applications

Typical uses include industrial process water transfer, HVAC systems, booster pumping, and general plant utility service where centrifugal, horizontal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377462

EAN 5713828121110
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100BB
Frequency converter NONE
Gross weight 78.2 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 8
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 72.7 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 4.25 A
Rated flow 24.8 US gpm
Rated head 294.8 ft
Rated power - P2 3 kW
Rated speed 3540 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 100BB
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 15
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

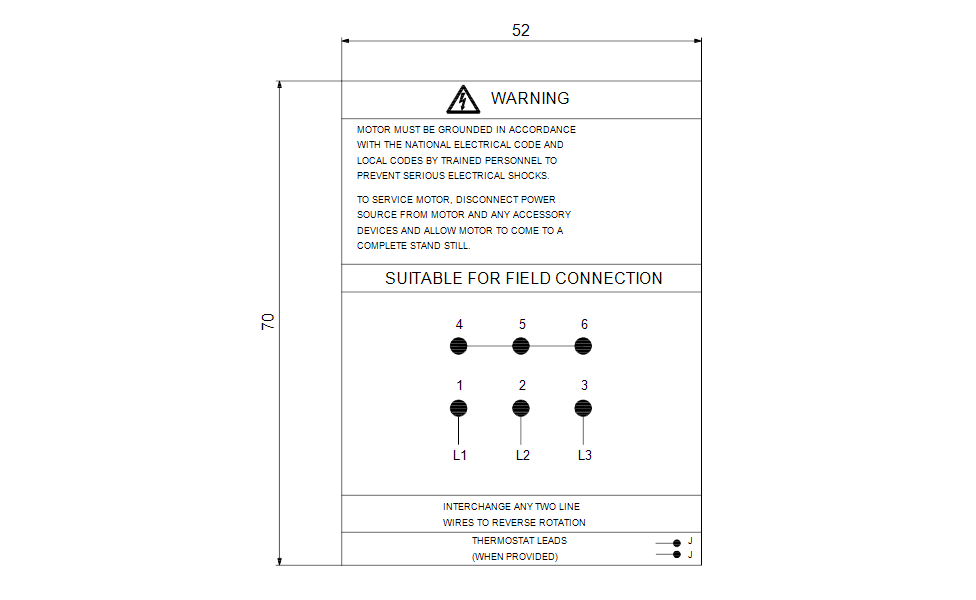

DWiring Diagram
