Grundfos 98717944 - CM 5-8 A-R-I-E-AQQE F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98717944

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98717944 - CM 5-8 A-R-I-E-AQQE F-A-A-N is a horizontal end-suction centrifugal pump designed for industrial and commercial fluid transfer applications, commonly used by contractors and facility maintenance teams.

Key features

  • Manufactured by Grundfos for reliable industrial performance
  • Compatible with CM series applications including booster, centrifugal, close-coupled, horizontal multistage, and multi-stage systems
  • Robust design provides steady flow and reduced downtime for routine pumping tasks

Applications

General water supply, booster systems, HVAC circulation, light industrial process pumping, and other centrifugal pump duties where a CM-series horizontal end-suction unit is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98717944

EAN 5712600404502
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90LE
Frequency converter NONE
Gross weight 64.8 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 8
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 59.3 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8.00/4.60 A
Rated flow 20.7 US gpm
Rated head 204.7 ft
Rated power - P2 2.2 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90LE
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 840-920 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A
Danish VVS No. 385214508

Motor Curves

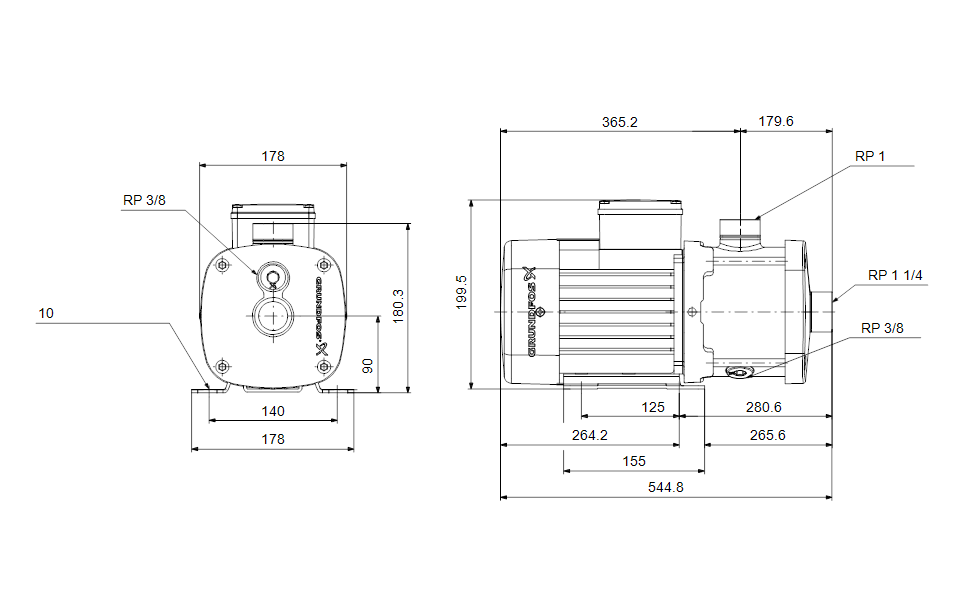

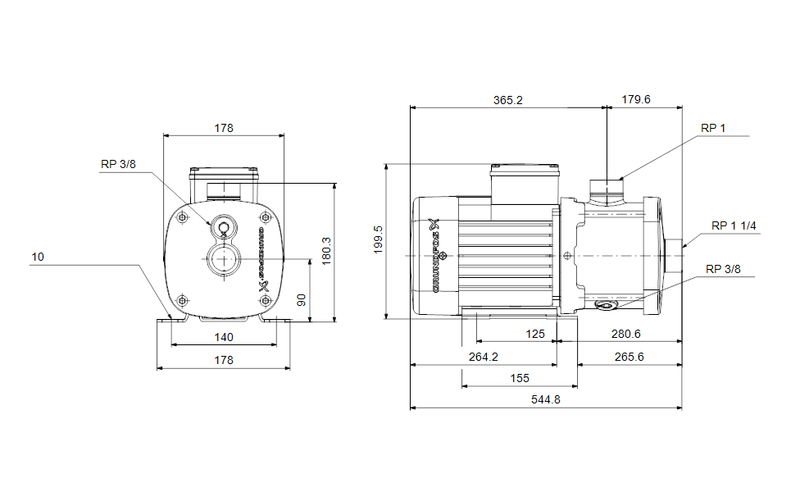

Dimensional Drawing

DWiring Diagram
