Grundfos 96806919 - CM 5-7 A-S-G-V-AQQV E-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,569.06
GRUNDFOSSKU: 96806919

Price:
Sale price$1,841.94 Regular price$3,411.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96806919 - CM 5-7 A-S-G-V-AQQV E-A-A-N is a horizontal, end-suction centrifugal pump from the CM series, suited for industrial and commercial fluid transfer. Operators in HVAC, water treatment, and process plants commonly use this model for mid-duty pumping applications.

Key features

  • CM series centrifugal design for reliable liquid transfer
  • Configured as horizontal end-suction for compact installation and easy maintenance
  • Offers consistent flow and pressure control to support booster and multistage systems

Applications

Typical uses include building booster systems, general water circulation, process plant transfer, and light industrial service where centrifugal, close-coupled or multistage configurations are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806919

EAN 5700310918662
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 62.1 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 7
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 56.5 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9
Rated flow 24.8 US gpm
Rated head 257.4 ft
Rated power - P2 2.5 kW
Rated speed 3485-3505 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 830-870 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

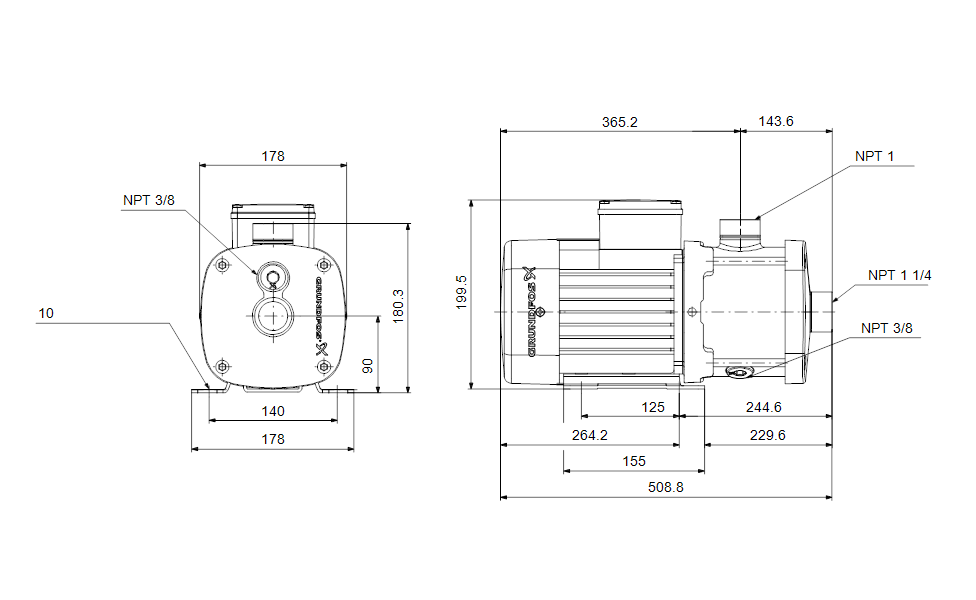

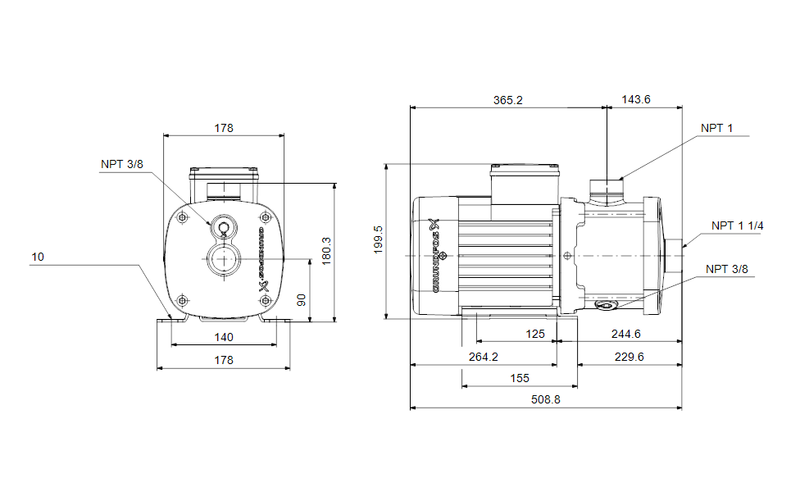

Dimensional Drawing

DWiring Diagram
