Grundfos 99106556 - CM 5-6 X-R-I-E-AQQE J-A-A-N | Multistage | Centrifugal | Horizontal

GRUNDFOSSKU: 99106556

Price:
Sale price$4,680.56
or Call for most up to date lead times. (781) 281-8905

Description

CM 5-6 X-R-I-E-AQQE J-A-A-N Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Special design features make the pump able to handle liquids down to -22 °F. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.

EAN 5712606875429
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100DA
Frequency converter NONE
Gross weight 76.7 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 71.2 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version X
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 4.05-4.60 A
Rated flow 24.8 US gpm
Rated head 219.9 ft
Rated power - P2 1.68 kW
Rated speed 2950-2960 rpm
Rated voltage 3 x 380-415 V V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 100DA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 1200-1350 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version X

Motor Curves

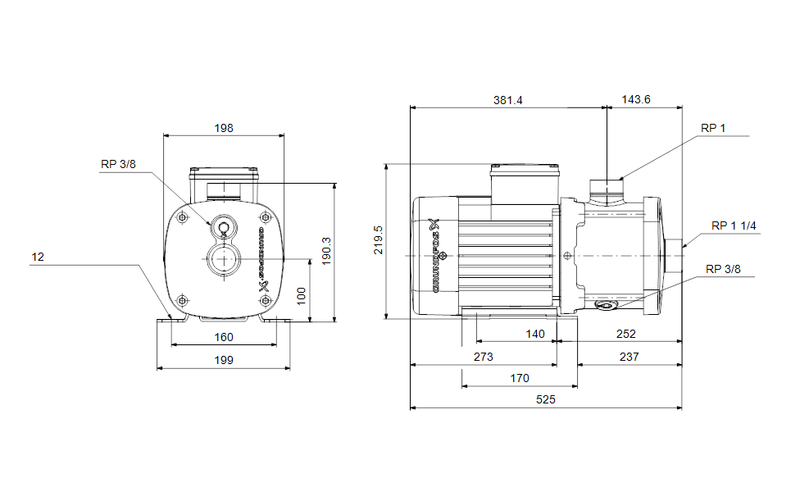

Dimensional Drawing

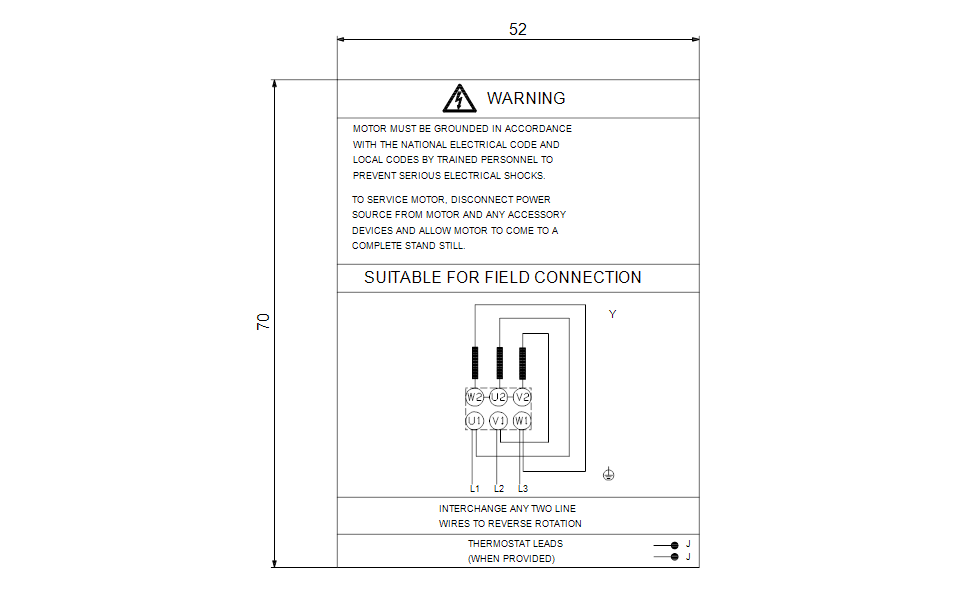

DWiring Diagram
