Grundfos 98125923 - CM 5-6 A-S-I-V-AQQV E-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,170.70
GRUNDFOSSKU: 98125923

Price:
Sale price$1,374.30 Regular price$2,545.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98125923 - CM 5-6 A-S-I-V-AQQV E-A-A-N Centrifugal Pump

The Grundfos 98125923 - CM 5-6 A-S-I-V-AQQV E-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for boosting pressure and ensuring efficient fluid transfer in both single and multi-stage setups.

With its robust construction and reliable operation, the CM series is perfect for those seeking durability and efficiency in their pumping solutions. This pump is categorized under various types including Booster, Centrifugal, Close Coupled, and Horizontal Multistage, making it a versatile choice for different operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98125923 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

EAN 5710629474858
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 61.9 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 56.4 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9
Rated flow 24.8 US gpm
Rated head 219.9 ft
Rated power - P2 2.5 kW
Rated speed 3485-3505 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 830-870 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

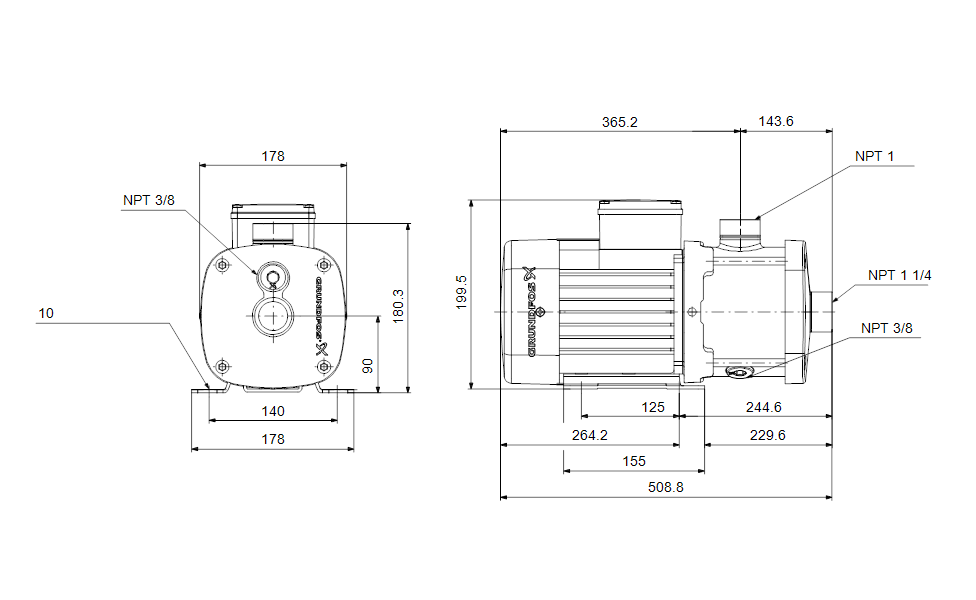

Dimensional Drawing

DWiring Diagram
