Grundfos 98677825 - CM 5-5 A-R-G-V-AQQV J-A-A-N | Multistage | Centrifugal | Horizontal

GRUNDFOSSKU: 98677825

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CM 5-5 A-R-G-V-AQQV J-A-A-N · Horizontal Multistage End-Suction Pump
CM1.7HP380-415 VV3.0-Phase50 HzIE3IP55Stainless steel

The Grundfos 98677825 (CM 5-5 A-R-G-V-AQQV J-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 20.7US gpm at 182.5ft. Rated 380-415 VV, 3.0-Phase, 50 Hz.

Power
1.7HP
Voltage
380-415 VV
Phase
3.0-Phase
Max Flow
20.7US gpm
Max Head
182.5ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CM 5-5 A-R-G-V-AQQV J-A-A-N
Series: CM
Model Code: CM 5-5 A-R-G-V-AQQV J-A-A-N
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQV
Technical Specifications
Model Number 98677825
Product Series CM
Series Description Horizontal Multistage End-Suction Pump
Power 1.7HP
Voltage 380-415 VV
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2960-2970rpm
Pump Speed 2900rpm
Full Load Current 3,30-3,60A
Motor Efficiency Class IE3
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 20.7US gpm
Nominal Head 182.5ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Max Ambient Temperature 131°F
Inlet Connection 1 1/4inch
Outlet Connection 1inch
Pipe Standard Rp
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal AQQV
Approvals / Certifications CE, CULUS, EAC, CURUS, UKCA
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-415 VV, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — CM 5-5 A-R-G-V-AQQV J-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711499453684
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 62.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 56.5 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.30-3.60 A
Rated flow 20.7 US gpm
Rated head 182.5 ft
Rated power - P2 1.27 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 1100-1150 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

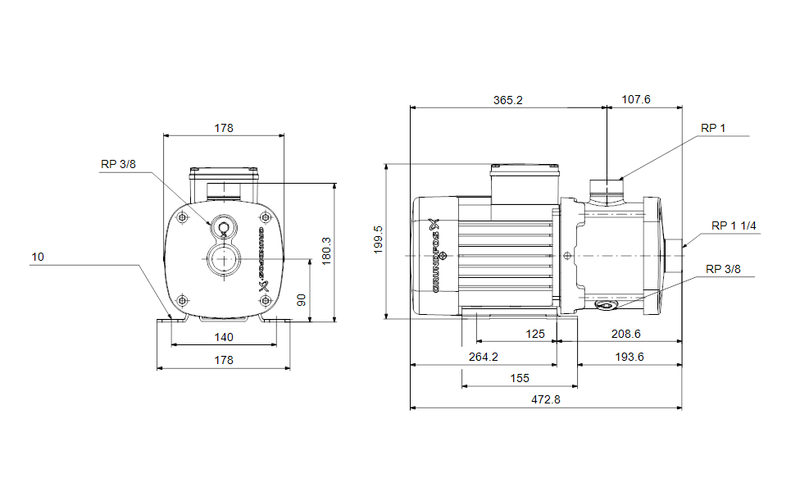

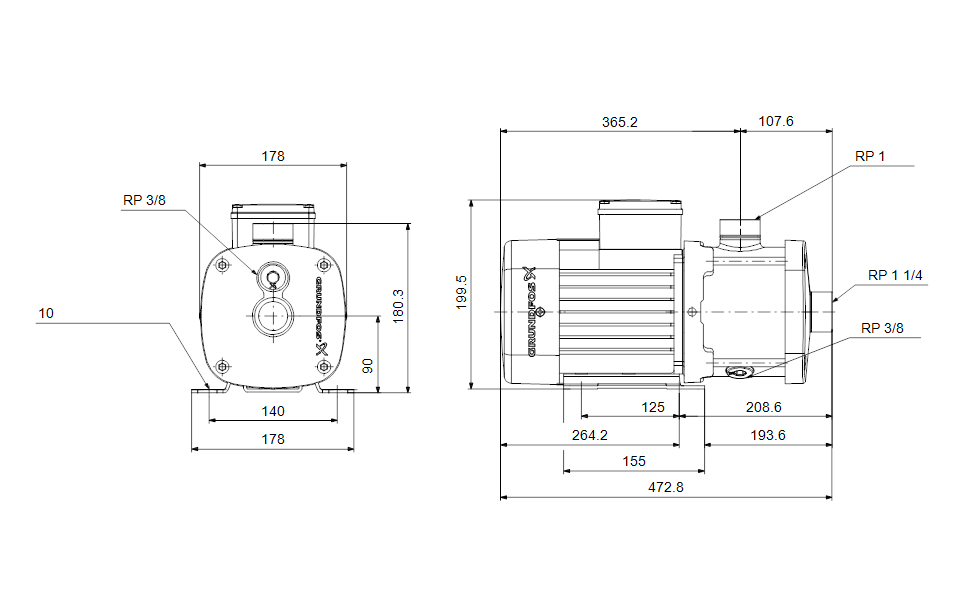

Dimensional Drawing

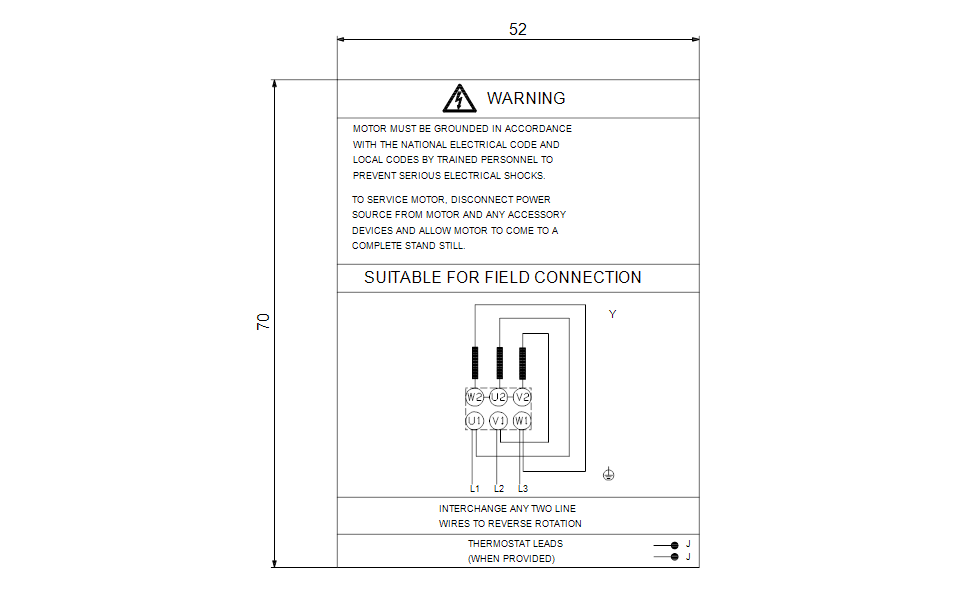

DWiring Diagram
