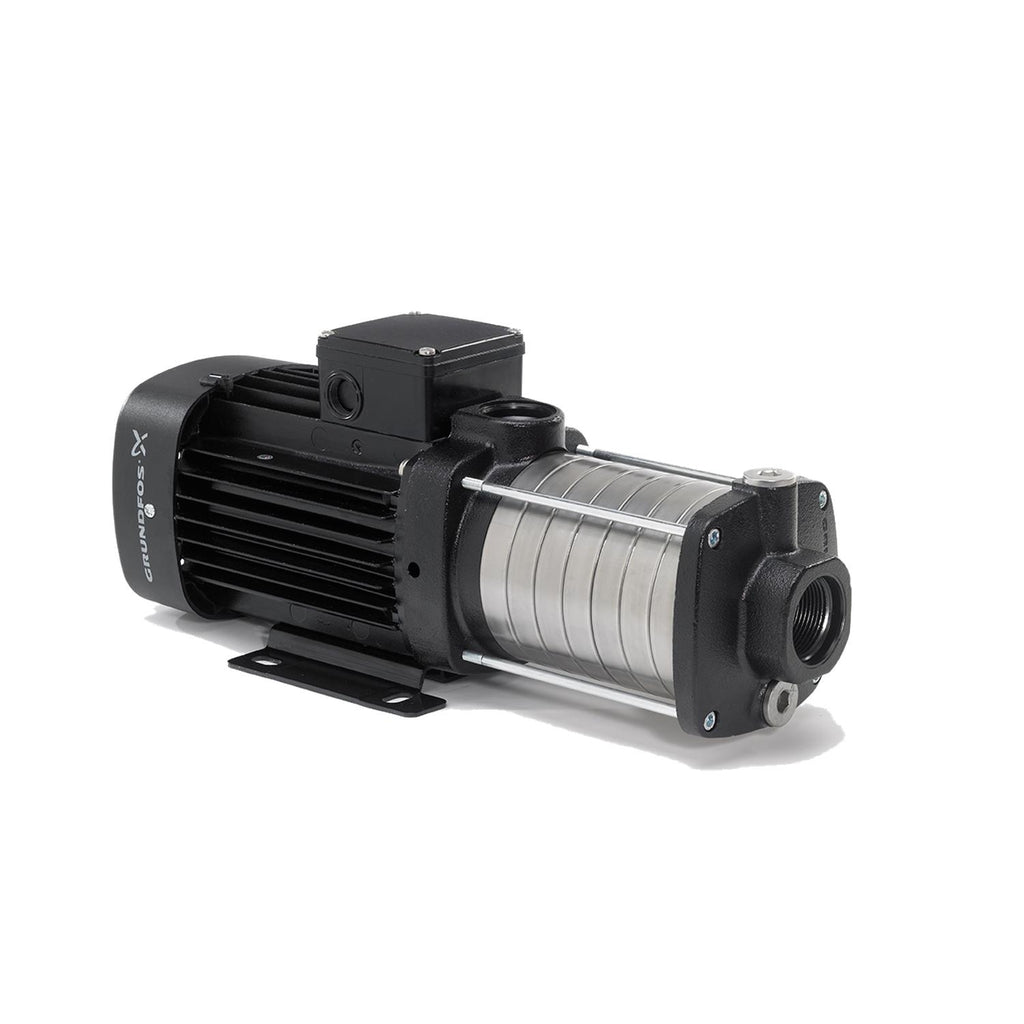

Grundfos 97826412 - CM 5-5 A-R-A-E-AVBE E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97826412

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97826412 - CM 5-5 A-R-A-E-AVBE E1-A-A-N

The Grundfos 97826412 - CM 5-5 A-R-A-E-AVBE E1-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for both single and multi-stage operations, making it a versatile choice for your pumping needs.

As a part of the renowned Grundfos CM series, this pump offers exceptional durability and performance, ensuring optimal operation in demanding environments. Whether you need a booster pump or a centrifugal pump, the CM 5-5 A-R-A-E-AVBE E1-A-A-N is engineered to meet your requirements.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to chat with us or give us a call. Let us help you find the perfect solution for your pumping needs!

EAN 5710625351641
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 29.3 kg
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -20 .. 40 °C
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 10 bar / 40 °C
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 26.8 kg
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 9
Rated flow 5.64 m³/h
Rated head 55.6 m
Rated power - P2 2.5 kW
Rated speed 3485-3505 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1
Size 90HA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 830-870 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

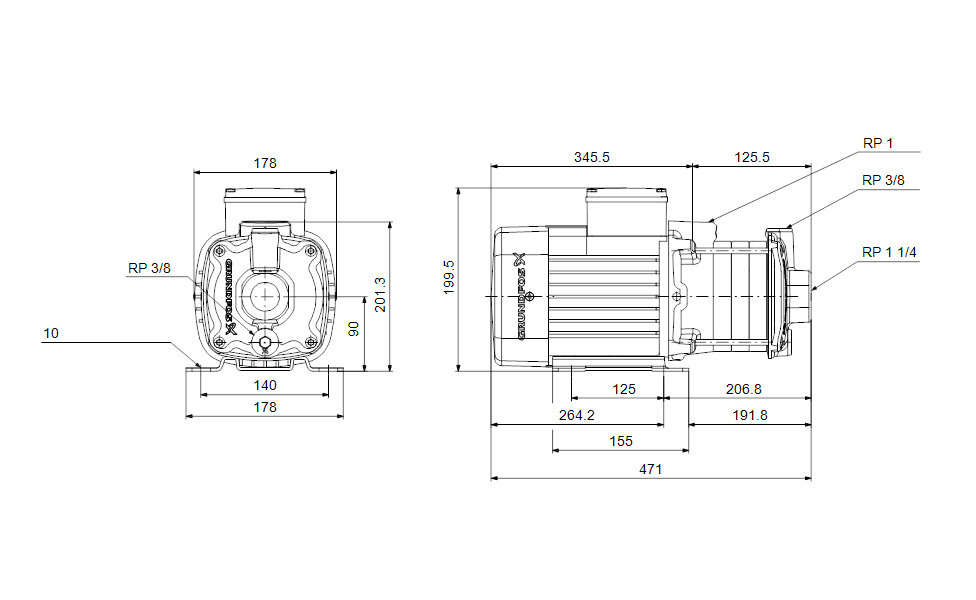

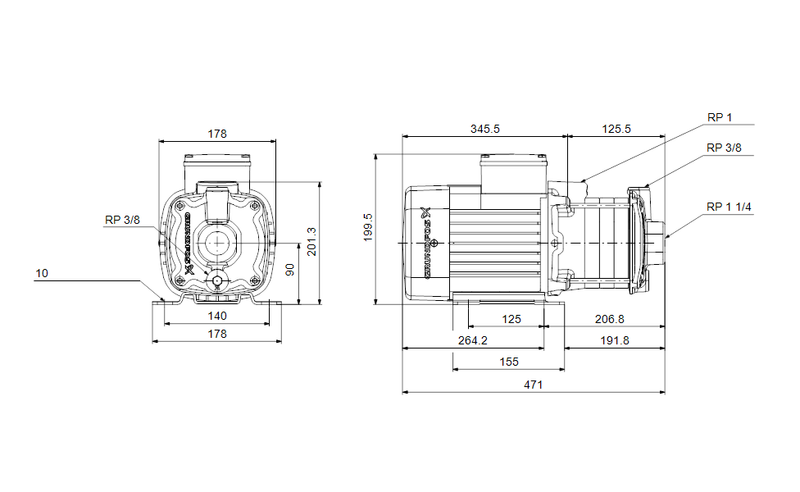

Dimensional Drawing

DWiring Diagram
