Description

Overview

The Grundfos 99377445 CM 5-4 A-S-G-E-AQQE H-A-A-N is a horizontal, end-suction centrifugal pump designed for industrial fluid handling and booster applications. It is suited for maintenance teams and plant engineers replacing a CM-series unit.

Key features

  • CM-series centrifugal design for reliable axial flow and straightforward serviceability
  • Compatible with booster, close-coupled, and multistage system arrangements per CM/CME tags
  • Provides robust performance for general industrial pumping needs, minimizing downtime

Applications

Typical uses include industrial process circulation, building services booster systems, and horizontal end-suction installations where a CM-series pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377445

EAN 5713828120694
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90CD
Frequency converter NONE
Gross weight 55.4 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 49.8 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2.2 A
Rated flow 24.8 US gpm
Rated head 145 ft
Rated power - P2 1.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90CD
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 9.6
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

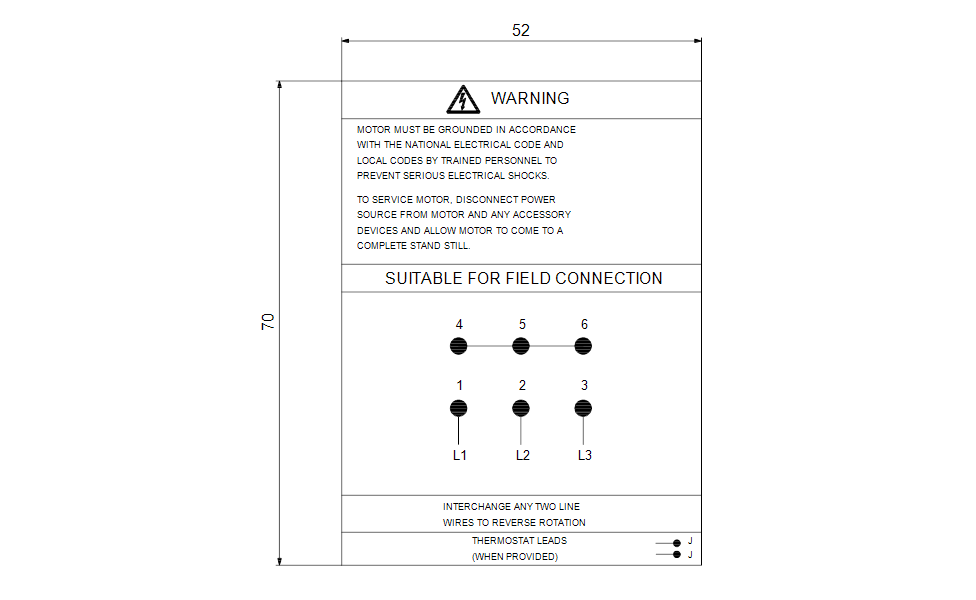

DWiring Diagram
