Grundfos 99227814 - CM 5-4 A-R-G-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99227814

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99227814 CM 5-4 A-R-G-E-AQQE E-A-A-N is a horizontal, end-suction centrifugal pump suited for industrial and commercial fluid transfer where reliable single- or multi-stage performance is needed by maintenance teams and service technicians.

Key features

  • Manufactured by Grundfos for robust industrial use and replacement service applications
  • Configuration cues: horizontal, end-suction centrifugal design suited to booster and close-coupled installations
  • Provides dependable fluid handling and simplified serviceability to minimize downtime

Applications

Typical uses include building services, booster systems, HVAC circulation, industrial process supply, and general centrifugal pumping duties where a compact horizontal unit is preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99227814

EAN 5712609059277
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 59.8 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 54.3 lb
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8
Rated flow 24.8 US gpm
Rated head 145 ft
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 930-980 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

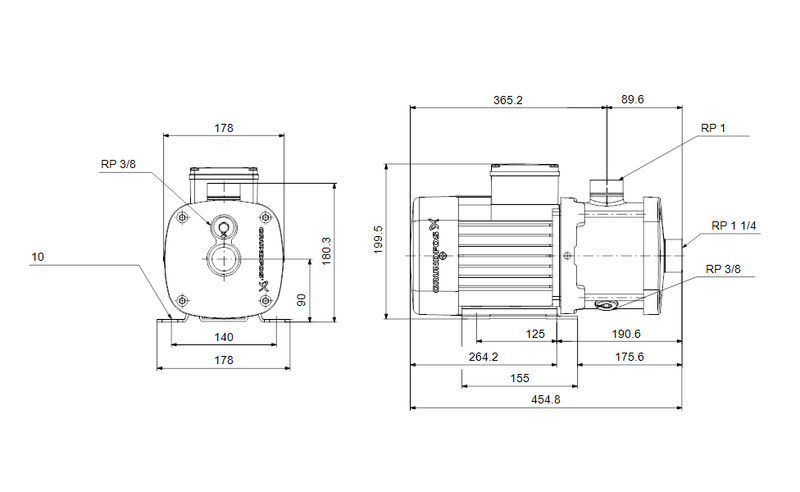

Dimensional Drawing

DWiring Diagram
