Description
CM 5-4 A-S-A-V-AQQV B-A-A-N | Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
EAN
5700318669771
Applications
Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Material Pricing Group
35
Code for rubber
V
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
145 psi / 194 °F
Maximum operating pressure
10 bar
Size of inlet connection
1 1/4 inch
Selected liquid temperature
68 °F
Type of connection
NPT(F)

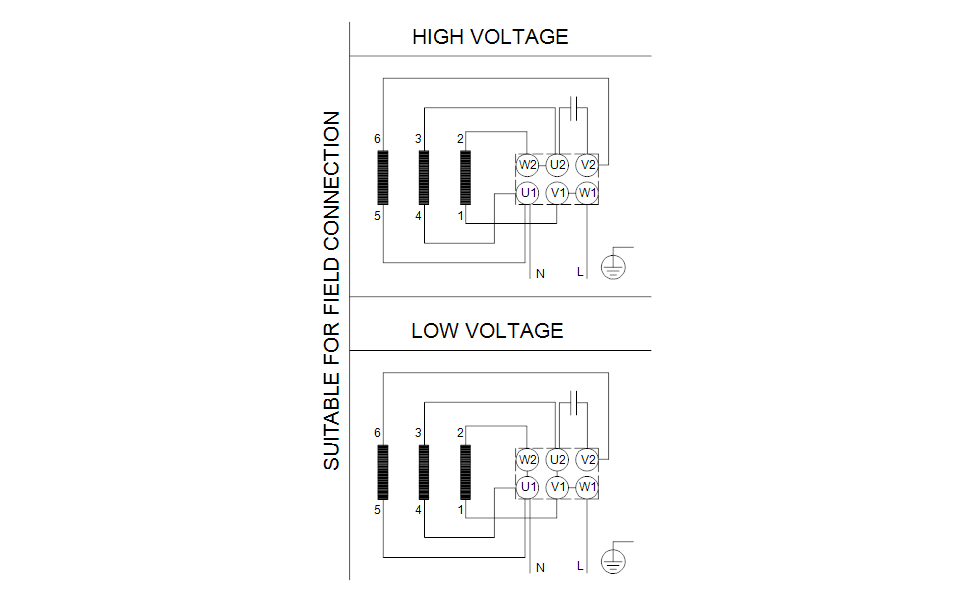

Rated voltage
1 x 115/230 V V
Pumped liquid
Water
Size of outlet connection
1 inch
Starting current
400-400 %
Connect code
S
Liquid temperature range
-4 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Net weight
53.4 lb
Rated speed
3360 rpm
Gross weight
58.9 lb
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP55
Rated current
18.8/9.8 A
Service factor
1
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Range of ambient temperature
-4 .. 131 °F
Terminal box position
12
Outlet position
12
Pump speed on which pump data are based
3480 rpm
Approvals
CE
Rated flow
24.8 US gpm
Model
A
Version
A
Rubber
V
Size
90CC
Housing
Cast iron
Approvals for drinking water
WRAS
Motor standard
NEMA
Rated head
145 ft
Curve tolerance
ISO9906:2012 3B
Impellers
4
Suitable for 50/60 Hz
N
Connection
1 inch
Impeller
Stainless steel
Code for shaft seal
AQQV
Pump housing
Cast iron
Cable included (Yes/No)
N
Frame size
90CC
Standard
NEMA
Pump version
A
Motor Curves
