Grundfos 98810885 - CM 5-3 D-R-A-V-AQQV G-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98810885

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98810885 is a CM series centrifugal pump configured for horizontal, end-suction installation and typically used in industrial service and booster applications. Technicians and facility maintenance teams use this replacement part for routine service and pump system repairs.

Key features

  • Service-oriented CM series design suitable for repair and refurbishment
  • Horizontal, end-suction centrifugal configuration for common pump systems
  • Supports multi-stage and booster system applications for reliable fluid handling

Applications

Suitable for industrial process support, building services booster systems, and centrifugal pump repairs where a horizontal, close-coupled or multistage replacement is required. Keep claims general and verify fitment for your installation.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98810885

EAN 5712601689328
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80C
Frequency converter NONE
Gross weight 39.4 lb
Housing Cast iron
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 33.9 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version D
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.95/3.45 A
Rated flow 24.8 US gpm
Rated head 107.5 ft
Rated power - P2 0.74 kW
Rated speed 2920 rpm
Rated voltage 3 x 200 / 346 V V
Real Time 1 Available on 12/19/2023 Plant: Fresno  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80C
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version D

Motor Curves

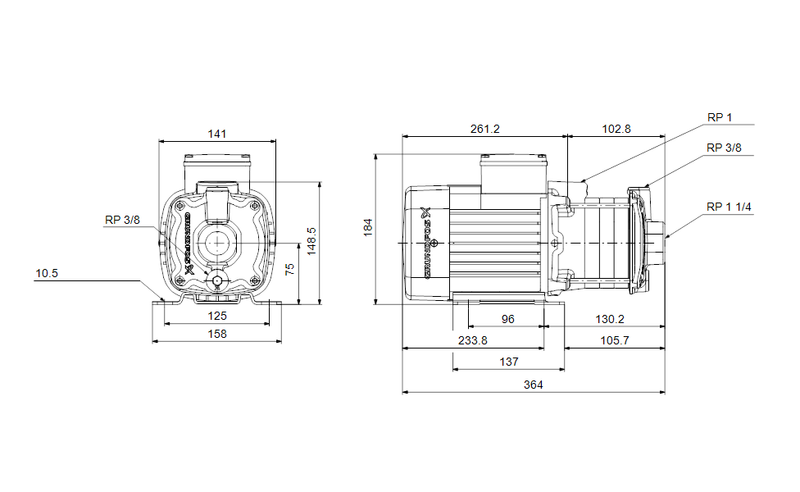

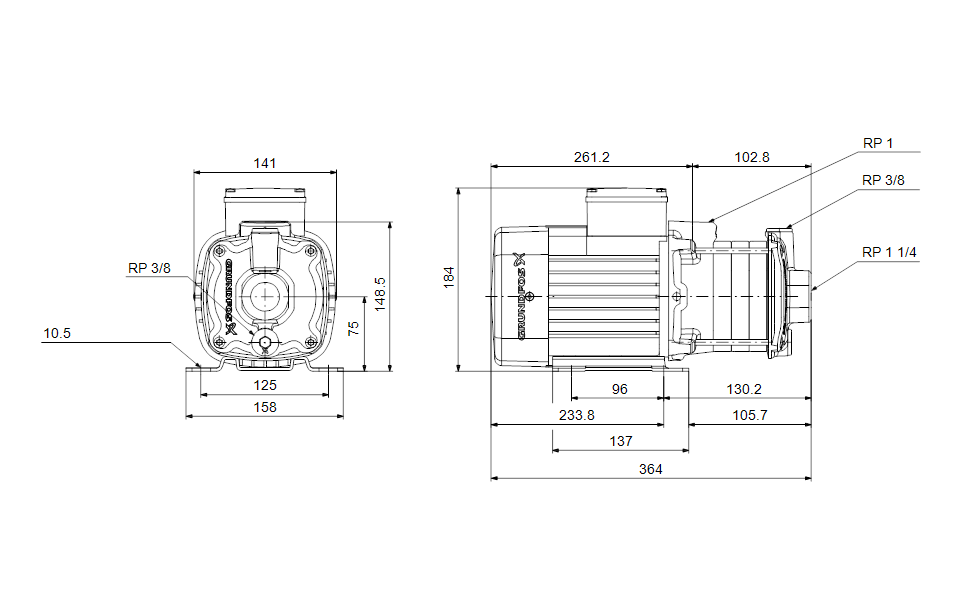

Dimensional Drawing

DWiring Diagram
