Grundfos 98157342 - CM 5-2 A-R-A-E-AVBE E-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98157342

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98157342 - CM 5-2 A-R-A-E-AVBE E-A-A-N

The Grundfos 98157342 - CM 5-2 A-R-A-E-AVBE E-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

As part of the CM series, this model features a robust construction and advanced technology, ensuring optimal performance in demanding environments. Its versatility allows it to be used in multiple settings, including commercial and industrial sectors.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711490629217
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 31.1 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 25.6 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3
Rated flow 24.8 US gpm
Rated head 70.08 ft
Rated power - P2 0.74 kW
Rated speed 3220-3370 rpm
Rated voltage 3 x 220-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

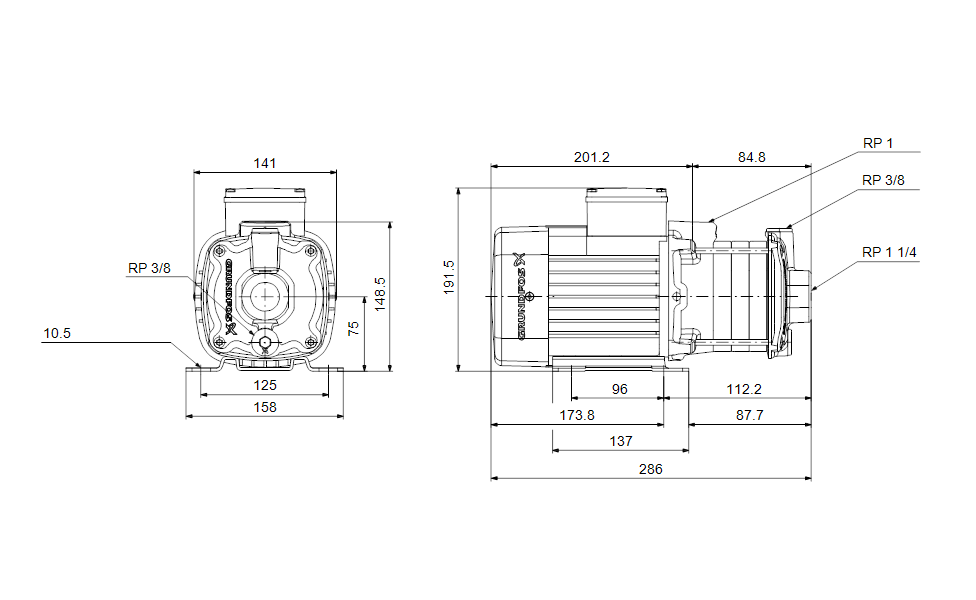

Dimensional Drawing

DWiring Diagram
