Grundfos 97738868 - CM 5-2 A-R-G-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97738868

Price:
Sale price$2,544.44
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738868 - CM 5-2 A-R-G-V-AQQV J-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CM service special series, which is known for its robust construction and versatility. It is suitable for various applications, including water supply, heating, and cooling systems. With its close-coupled design, the CM 5-2 A-R-G-V-AQQV J-A-A-N ensures easy installation and maintenance, making it a preferred choice among professionals.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps and discover the perfect solution for your needs today!

EAN 5710623352312
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 32.7 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 27.1 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.4-1.5 A
Rated flow 24.8 US gpm
Rated head 70.11 ft
Rated power - P2 0.43 kW
Rated speed 2860-2890 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 550-600 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

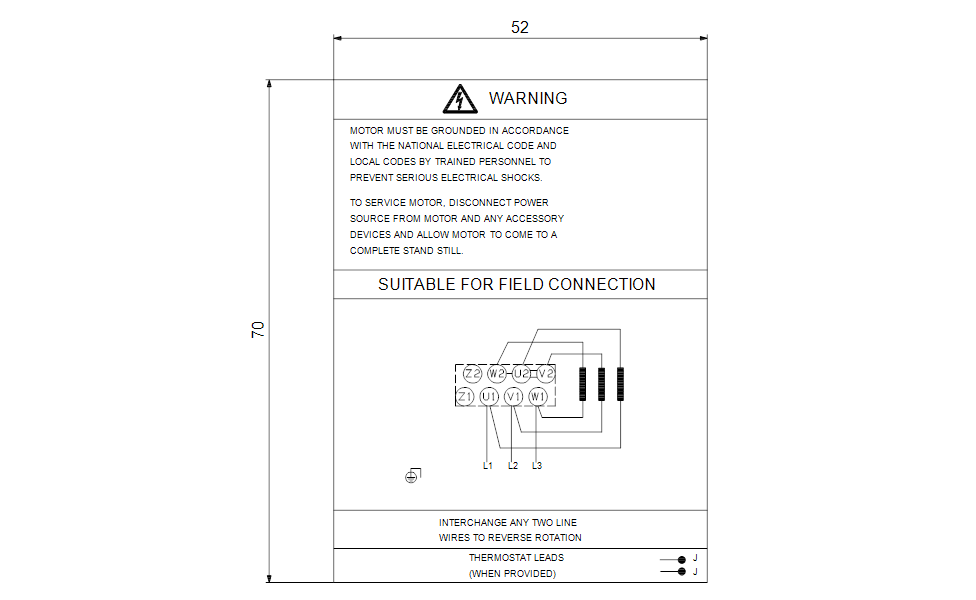

DWiring Diagram
