Grundfos 96807031 - CM 5-2 A-R-A-E-AQQE F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96807031

Price:
Sale price$1,373.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96807031 is a CM-series centrifugal pump configured as a horizontal, end-suction unit suited for industrial fluid handling. The CM 5-2 model is used by technicians and maintenance teams for boosting, transfer, and circulation duties.

Key features

  • CM-series construction for reliable industrial performance
  • Horizontal end-suction centrifugal design noted in product tags
  • Provides steady flow and pressure control for boosting and circulation applications

Applications

Typical uses include booster systems, close-coupled pump installations, multistage and single-stage centrifugal service, and general industrial water transfer.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96807031

EAN 5700310919782
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71A
Frequency converter NONE
Gross weight 29.6 lb
Housing Cast iron
IE Efficiency class IE2
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 24.1 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2
Rated flow 20.7 US gpm
Rated head 48.66 ft
Rated power - P2 0.46 kW
Rated speed 2770-2820 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71A
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 490-530 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A
Danish VVS No. 385212052
Finnish LVI No. 4925746

Motor Curves

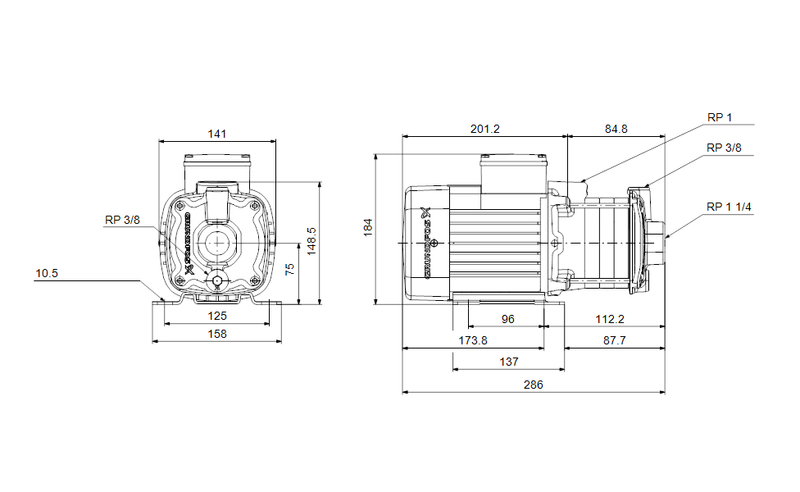

Dimensional Drawing

DWiring Diagram
