Grundfos 99619253 - CM 3-9 A-S-I-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99619253

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99619253 - CM 3-9 A-S-I-V-AQQV J-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is ideal for boosting water pressure and handling various fluid transfer tasks efficiently.

This model features a robust construction and is categorized under Service Special, making it a reliable choice for both single and multi-stage pumping needs. With its close-coupled design, the CM 3-9 A-S-I-V-AQQV ensures optimal space-saving installation while delivering exceptional performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos CM 3-9 A-S-I-V-AQQV pump today and experience the quality that comes with the Grundfos name.

EAN 5713832016952
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 65.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 9
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 59.5 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.30-3.60 A
Rated flow 16.4 US gpm
Rated head 296.3 ft
Rated power - P2 1.27 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 1100-1150 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

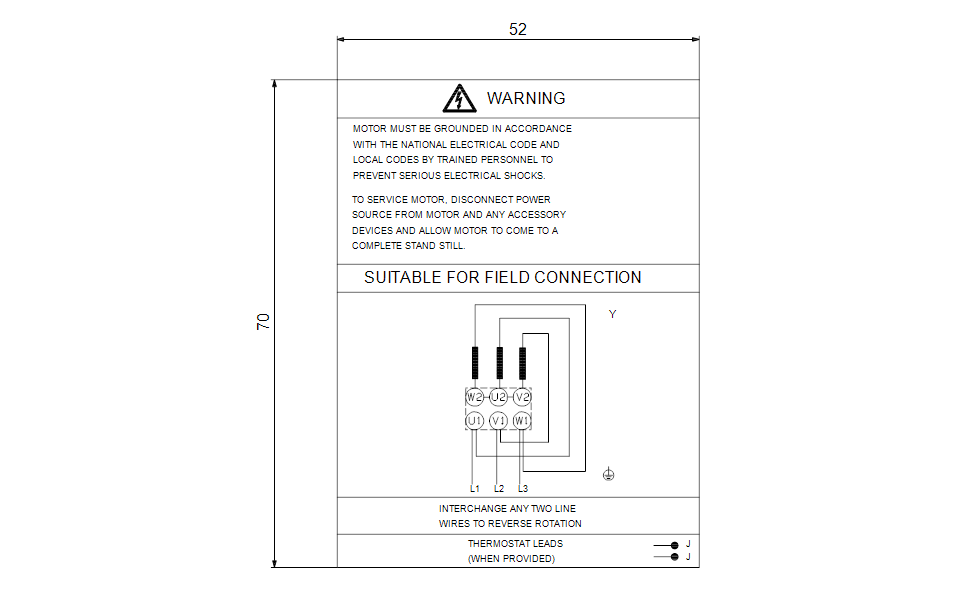

DWiring Diagram
