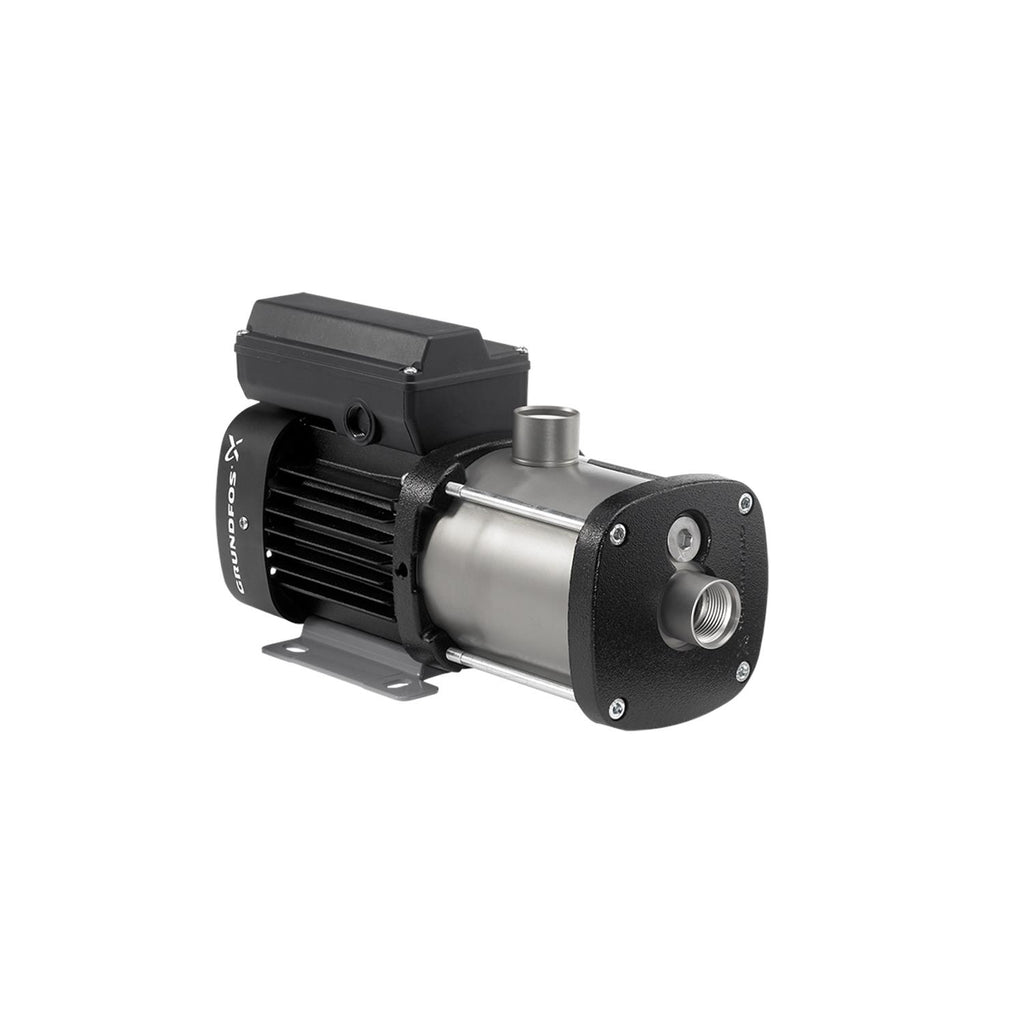

Grundfos 98125863 - CM 3-8 A-S-I-V-AQQV B-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,460.96
GRUNDFOSSKU: 98125863

Price:
Sale price$1,715.04 Regular price$3,176.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98125863 - CM 3-8 A-S-I-V-AQQV B-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CM series, known for its versatility and robust construction. It is suitable for various applications, including water supply, heating, and cooling systems. With its close-coupled design, the CM 3-8 A-S-I-V-AQQV B-A-A-N ensures easy installation and maintenance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5710629470904
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90CC
Frequency converter NONE
Gross weight 59.8 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 8
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 54.2 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 18.8/9.8 A
Rated flow 16.4 US gpm
Rated head 263 ft
Rated power - P2 1.5 kW
Rated speed 3360 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90CC
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 400-400 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

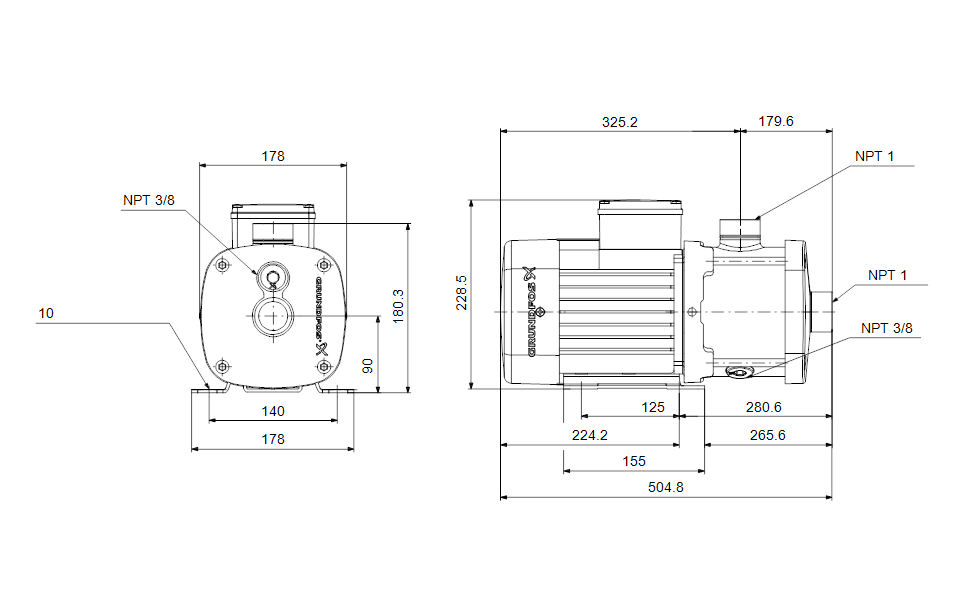

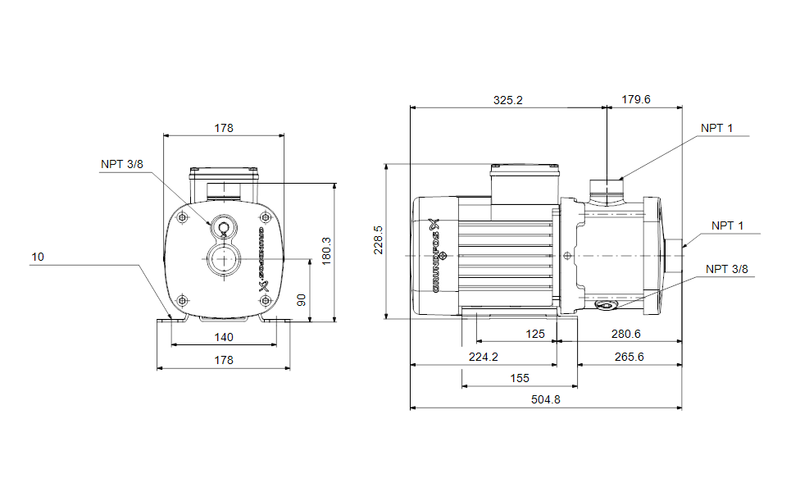

Dimensional Drawing

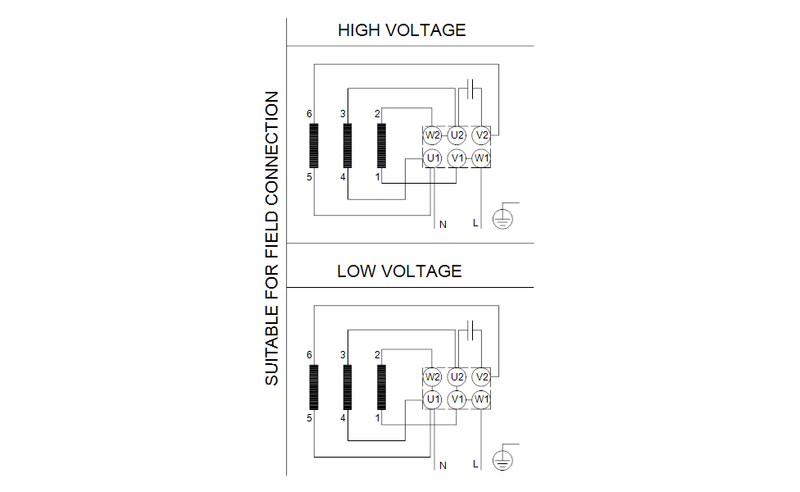

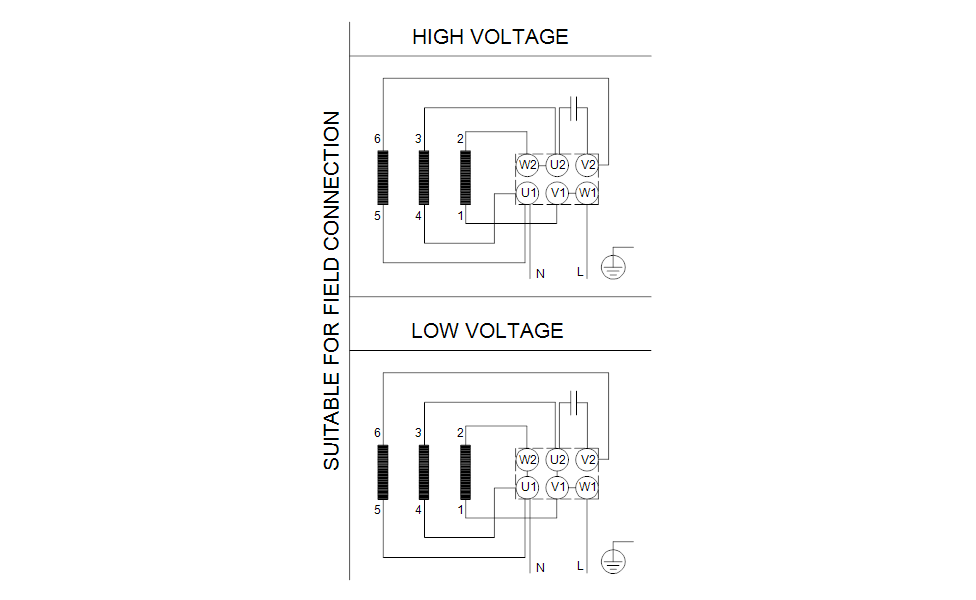

DWiring Diagram
