Grundfos 96806915 - CM 3-7 A-S-G-V-AQQV E-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,215.78
GRUNDFOSSKU: 96806915

Price:
Sale price$1,427.22 Regular price$2,643.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806915 is a horizontal, end-suction centrifugal pump from the CM series designed for industrial and commercial fluid transfer. It fits applications where a compact, reliable centrifugal unit is required by maintenance and facility teams.

Key features

  • Manufactured by Grundfos for CM series performance and durability
  • Horizontal end-suction centrifugal design noted in product tags
  • Compact configuration provides straightforward installation and serviceability

Applications

Suitable for booster systems, circulation, and general centrifugal pumping duties in industrial, commercial, and HVAC environments where CM/CME family pumps are used.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806915

EAN 5700310918624
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90GB
Frequency converter NONE
Gross weight 53.6 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 7
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 48.1 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 6
Rated flow 16.4 US gpm
Rated head 229.6 ft
Rated power - P2 1.7 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90GB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 770-810 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

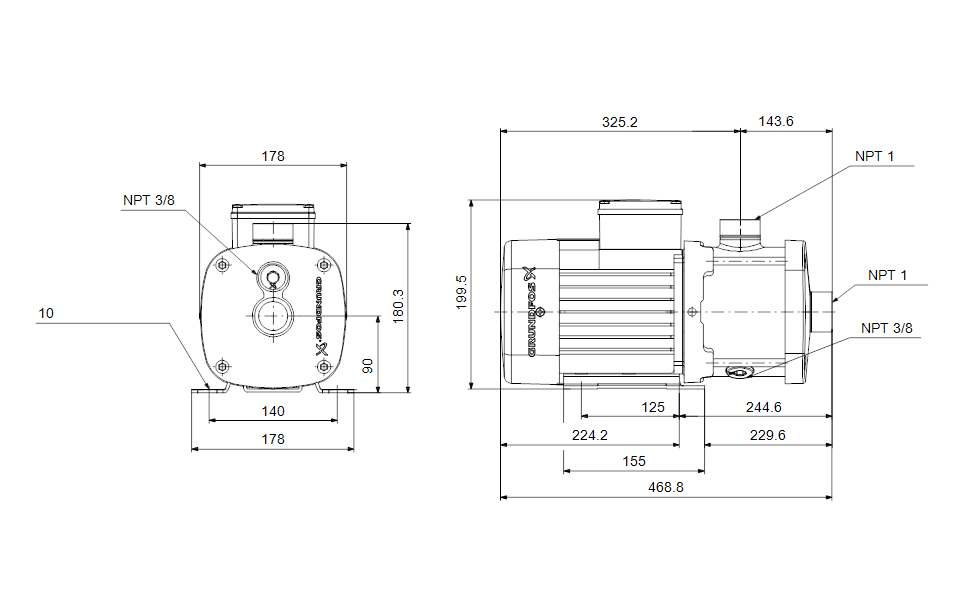

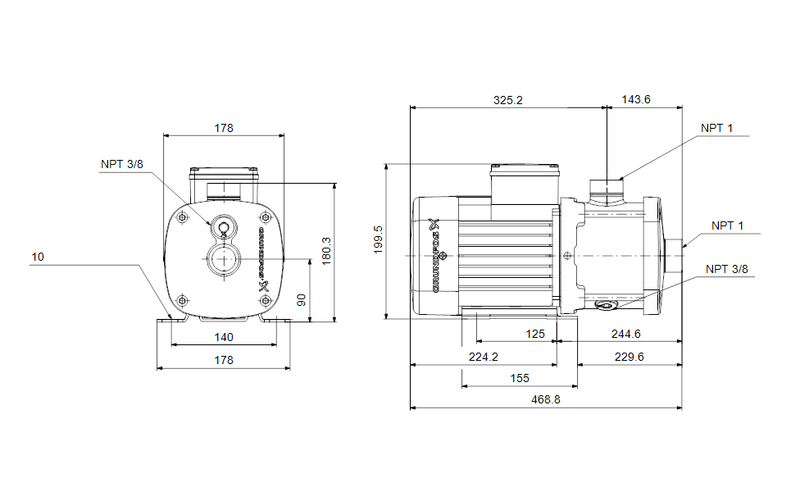

Dimensional Drawing

DWiring Diagram
