Grundfos 99973651 - CM 3-6 A-R-G-V-AQBE E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99973651

Price:
Sale price$3,098.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99973651 - CM 3-6 A-R-G-V-AQBE E1-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for both single and multi-stage pumping needs.

This model is part of the CM Service Special series, which is known for its robust construction and versatility. It is suitable for various applications, including water supply, pressure boosting, and HVAC systems. With its close-coupled design, the CM 3-6 A-R-G-V-AQBE ensures easy installation and maintenance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos 99973651 - CM 3-6 A-R-G-V-AQBE E1-A-A-N and elevate your pumping solutions today!

EAN 5715114972390
Approvals CE
Approvals for drinking water NSF61
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 63.4 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 57.9 lb
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8
Rated flow 16.4 US gpm
Rated head 196.2 ft
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 930-980 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

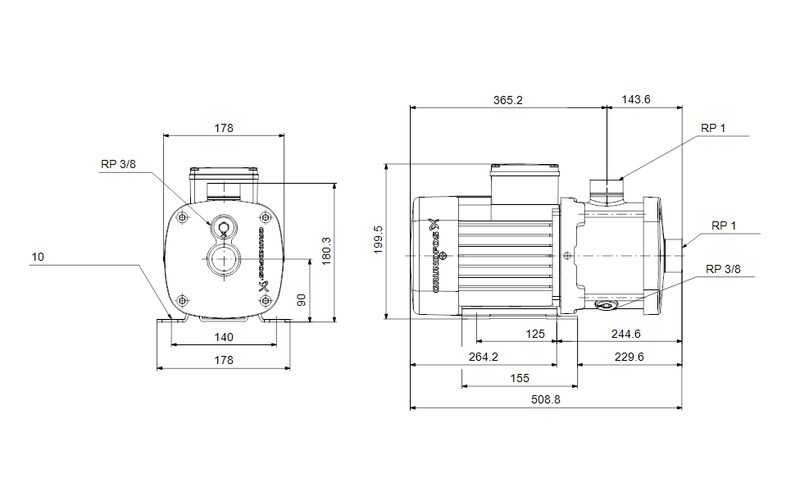

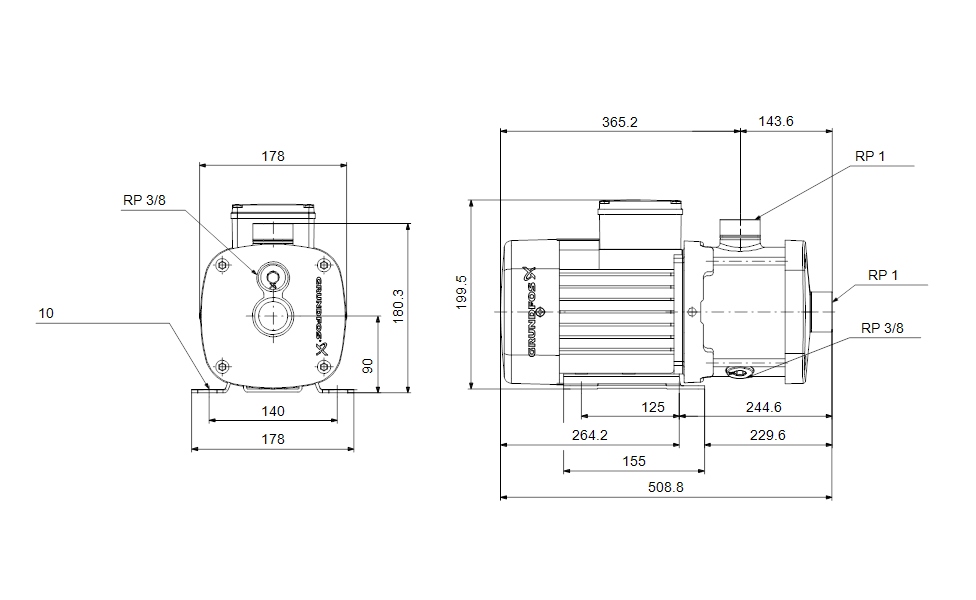

Dimensional Drawing

DWiring Diagram
