Grundfos 99059758 - CM 3-6 A-S-I-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $883.20
GRUNDFOSSKU: 99059758

Price:
Sale price$1,036.80 Regular price$1,920.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99059758 is a CM-series horizontal end-suction centrifugal pump suited for industrial and commercial fluid handling. It fits installations needing reliable close-coupled or multistage centrifugal performance for booster and process systems.

Key features

  • CM-series centrifugal design for stable flow and pressure
  • Horizontal, end-suction configuration for compact footprint and easy service
  • Versatile for close-coupled, booster, and multistage applications to improve system efficiency

Applications

Typical uses include building water supply and booster systems, HVAC circulation, light industrial process pumping, and irrigation or general transfer duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99059758

EAN 5712605982098
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90HA
Frequency converter NONE
Gross weight 61.9 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 56.4 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8
Rated flow 16.4 US gpm
Rated head 196.2 ft
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90HA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 930-980 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

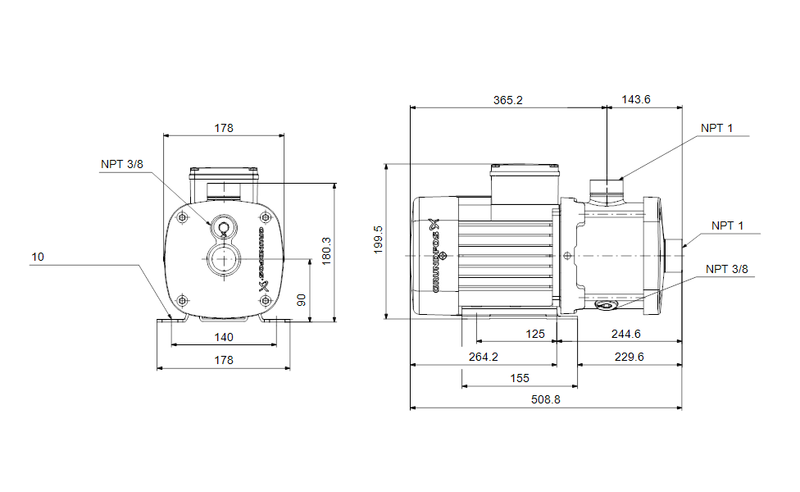

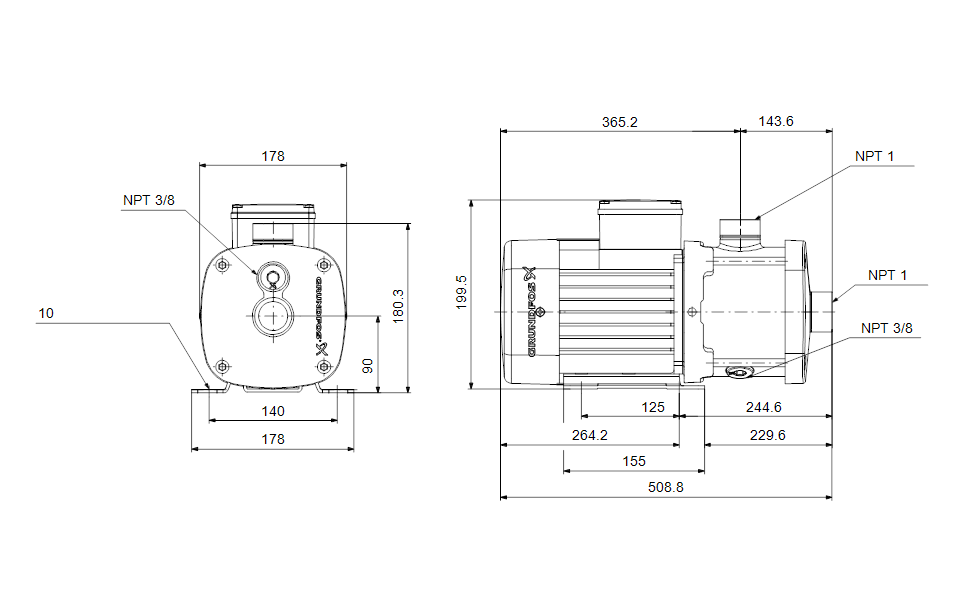

Dimensional Drawing

DWiring Diagram
