Grundfos 97669157 - CM 3-6 A-R-I-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97669157

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97669157 - CM 3-6 A-R-I-E-AQQE J-A-A-N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710620868625
Approvals CE
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 43.2 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 37.7 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.95-2.1 A
Rated flow 16.4 US gpm
Rated head 196.2 ft
Rated power - P2 0.74 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 930-970 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

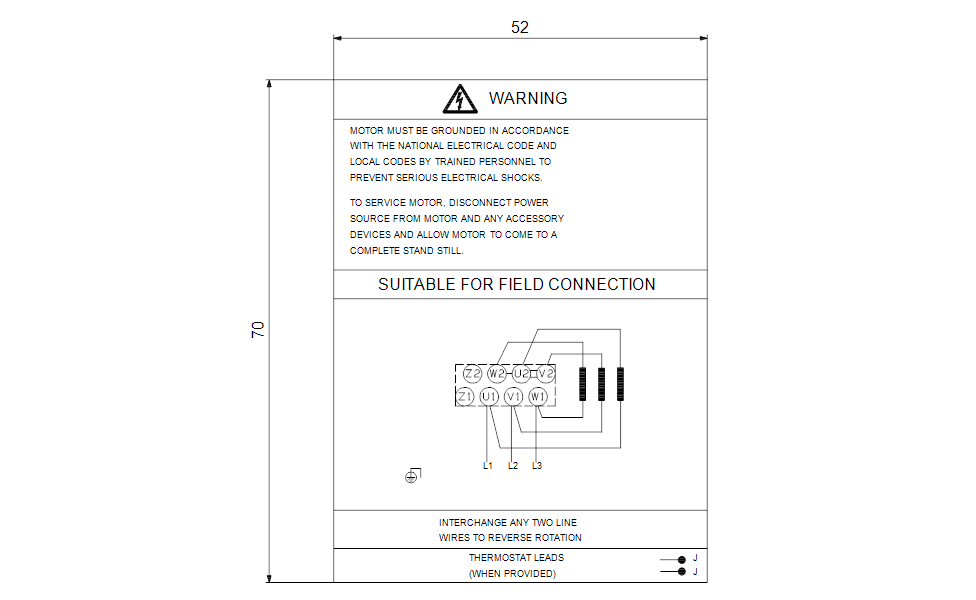

DWiring Diagram
