Grundfos 97568304 - CM 3-6 A-S-G-V-AQQV B-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,344.58
GRUNDFOSSKU: 97568304

Price:
Sale price$1,578.42 Regular price$2,923.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 97568304 - CM 3-6 A-S-G-V-AQQV B-A-A-N is a horizontal, end-suction centrifugal pump in the CM family designed for industrial and commercial fluid handling tasks. Grundfos manufactures this unit for applications requiring reliable single or multistage centrifugal performance.

Key features

  • CM series construction for robust operation in industrial settings
  • Horizontal end-suction centrifugal configuration suited to close-coupled and multistage layouts
  • Delivers dependable boosting and process water handling to improve system uptime

Applications

Suitable for booster systems, HVAC and circulating duties, general water transfer, and light industrial process service where a CM-series centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97568304

EAN 5700318668651
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90CC
Frequency converter NONE
Gross weight 58.3 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 52.8 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 18.8/9.8 A
Rated flow 16.4 US gpm
Rated head 196.2 ft
Rated power - P2 1.5 kW
Rated speed 3360 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90CC
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 400-400 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

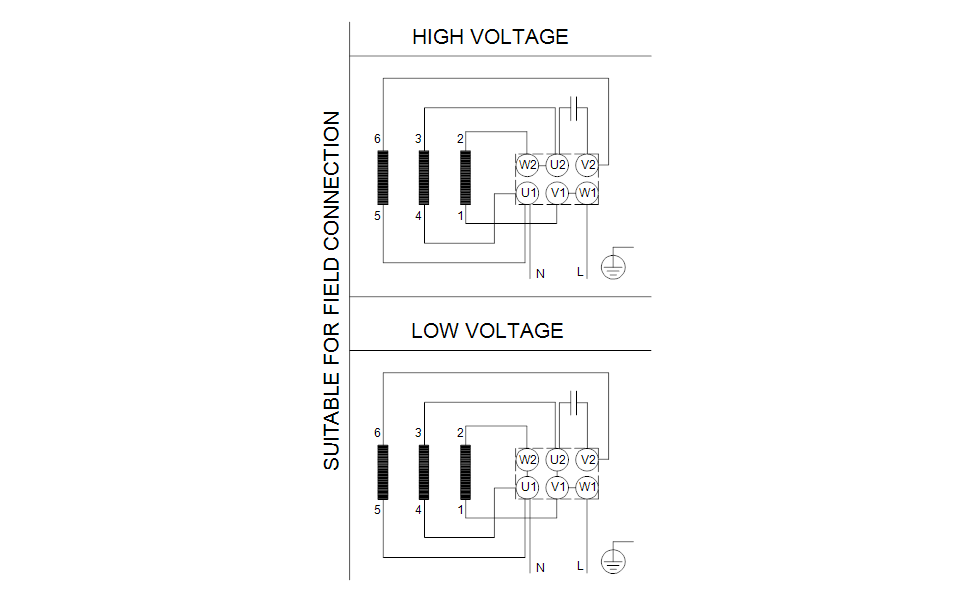

DWiring Diagram
