Description
CM 3-6 A-S-G-E-AQQE B-A-A-N | Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
EAN
5700318668613
Applications
Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Material Pricing Group
35
Code for rubber
E
Material code
G
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 194 °F
Maximum operating pressure
16 bar
Size of inlet connection
1 inch
Selected liquid temperature
68 °F
Type of connection
NPT(F)

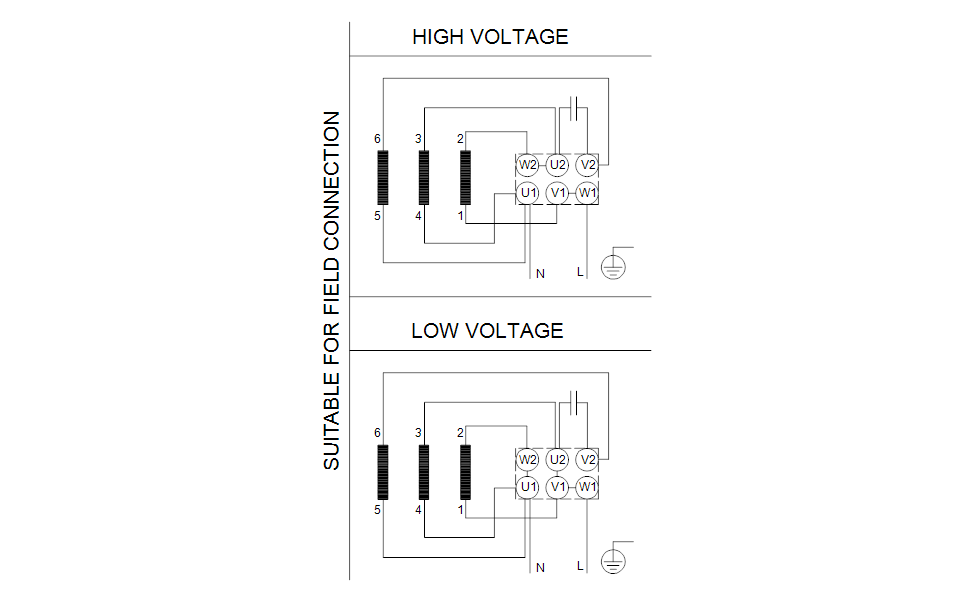

Rated voltage
1 x 115/230 V V
Pumped liquid
Water
Size of outlet connection
1 inch
Starting current
400-400 %
Connect code
S
Liquid temperature range
-4 .. 248 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Net weight
52.8 lb
Rated speed
3360 rpm
Gross weight
58.3 lb
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP55
Rated current
18.8/9.8 A
Service factor
1
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Range of ambient temperature
-4 .. 131 °F
Terminal box position
12
Outlet position
12
Pump speed on which pump data are based
3480 rpm
Approvals
CE
Rated flow
16.4 US gpm
Model
A
Version
A
Rubber
E
Size
90CC
Housing
Stainless steel
Approvals for drinking water
WRAS
Motor standard
NEMA
Rated head
196.2 ft
Curve tolerance
ISO9906:2012 3B
Impellers
6
Suitable for 50/60 Hz
N
Connection
1 inch
Impeller
Stainless steel
Code for shaft seal
AQQE
Pump housing
Stainless steel
Cable included (Yes/No)
N
Frame size
90CC
Standard
NEMA
Pump version
A
