Grundfos 96806845 - CM 3-6 A-R-G-V-AQQV F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96806845

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806845 - CM 3-6 A-R-G-V-AQQV F-A-A-N is a horizontal end-suction centrifugal pump used in industrial and commercial fluid-handling systems, suited to applications requiring multi-stage boosting and close-coupled installations.

Key features

  • Designed for industrial centrifugal and booster applications
  • Configuration supports close-coupled, horizontal multistage installations
  • Delivers reliable, efficient fluid transfer for general process use

Applications

Suitable for booster systems, HVAC circulation, building services, and light industrial process water transfer where a compact horizontal centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806845

EAN 5700310917924
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71B
Frequency converter NONE
Gross weight 35.7 lb
Housing Stainless steel
IE Efficiency class IE2
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 30.2 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2
Rated flow 13.6 US gpm
Rated head 136.3 ft
Rated power - P2 0.65 kW
Rated speed 2820-2850 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71B
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 510-510 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

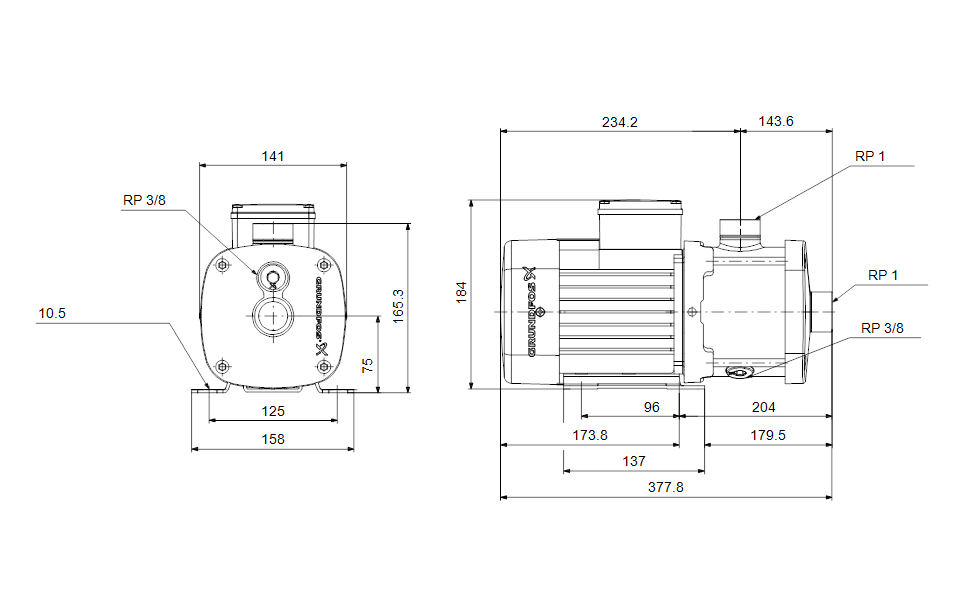

Dimensional Drawing

DWiring Diagram
