Grundfos 99787519 - CM 3-5 A-S-G-V-AVBV B-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99787519

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99787519 - CM 3-5 A-S-G-V-AVBV B-A-A-N

The Grundfos 99787519 - CM 3-5 A-S-G-V-AVBV B-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model falls under the category of Centrifugal Pumps, specifically designed for single and multi-stage operations. It is perfect for applications requiring a robust and durable pumping solution. With its close-coupled design, the CM 3-5 A-S-G-V-AVBV ensures easy installation and maintenance, making it a preferred choice for professionals in the industry.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99787519. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5713834285998
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AVBV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80BA
Frequency converter NONE
Gross weight 39.9 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 104 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 34.4 lb
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 14.6/7.3 A
Rated flow 16.4 US gpm
Rated head 162.8 ft
Rated power - P2 1.1 kW
Rated speed 3320 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 320-320 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

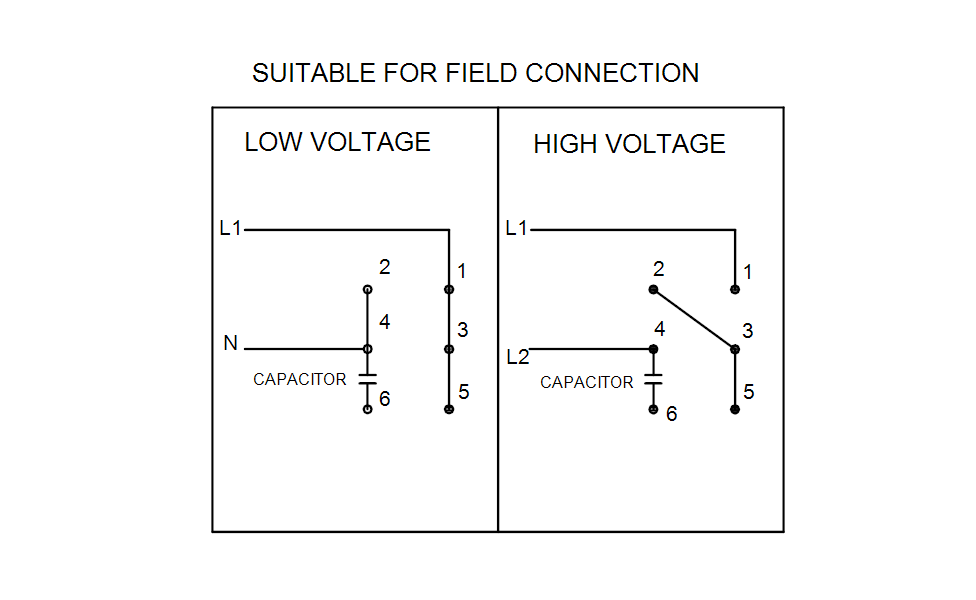

DWiring Diagram
