Grundfos 99173808 - CM 3-5 A-R-G-E-AVBE J-A-A-N | Multistage | Centrifugal | Horizontal

GRUNDFOSSKU: 99173808

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CM 3-5 A-R-G-E-AVBE J-A-A-N Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.

EAN 5712608089992
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 41.9 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 104 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 36.4 lb
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.82-1.98 A
Rated flow 16.4 US gpm
Rated head 162.8 ft
Rated power - P2 0.64 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 380-415 V V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 930-970 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

Dimensional Drawing

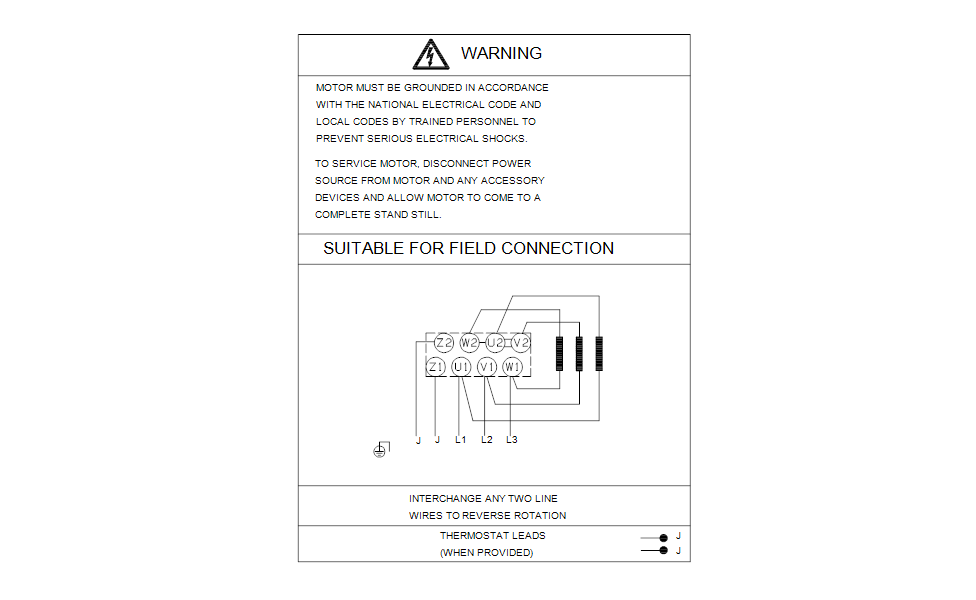

DWiring Diagram
