Grundfos 99155392 - CM 3-5 A-S-A-V-AQQV E-A-A-N | Horizontal | End Suction | Centrifugal

Save $705.64
GRUNDFOSSKU: 99155392

Price:
Sale price$828.36 Regular price$1,534.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99155392 is a CM 3-5 A-S-A-V-AQQV E-A-A-N horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer. It fits applications requiring a robust service-special centrifugal unit used by maintenance technicians and pump service shops.

Key features

  • End-suction centrifugal design for straightforward installation and serviceability
  • Horizontal configuration common to CM series and CME/CME-Plus product families
  • Practical benefit: compact service-special build simplifies replacement and reduces downtime

Applications

Typical uses include booster systems, general centrifugal pumping, close-coupled installations, and multistage replacement situations in commercial and light industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99155392

EAN 5712607775254
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 40.0 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 34.5 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5
Rated flow 16.4 US gpm
Rated head 164.2 ft
Rated power - P2 1.1 kW
Rated speed 3430-3470 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

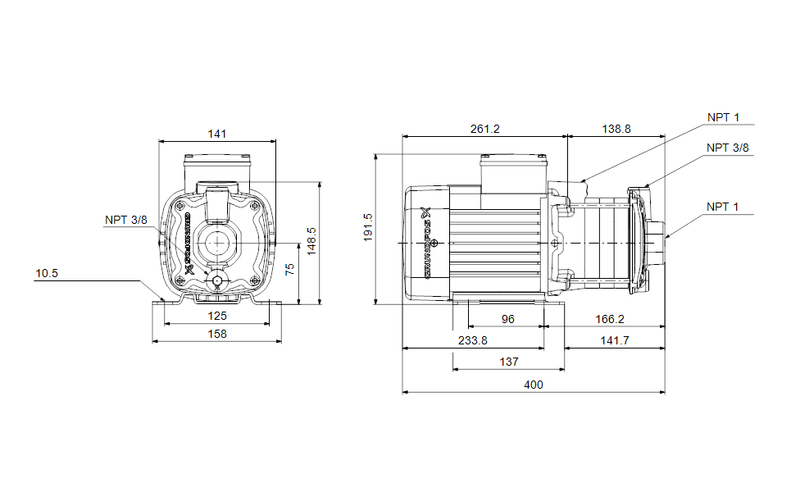

Dimensional Drawing

DWiring Diagram
