Grundfos 99080210 - CM 3-5 A-R-A-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99080210

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99080210 CM 3-5 A-R-A-E-AQQE J-A-A-N is a horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer tasks, commonly installed where reliable booster or process circulation is required.

Key features

  • CM series compact design for space-conscious installations
  • Configured as a horizontal end-suction centrifugal unit from Grundfos
  • Provides dependable pumping for booster, circulation, and general transfer applications

Applications

Typical uses include building services boosting, HVAC circulation, light industrial process pumping, and retrofit replacements where compact centrifugal units are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99080210

EAN 5712606358311
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 39.7 lb
Housing Cast iron
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 34.2 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.82-1.98 A
Rated flow 16.4 US gpm
Rated head 164.1 ft
Rated power - P2 0.64 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 930-970 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

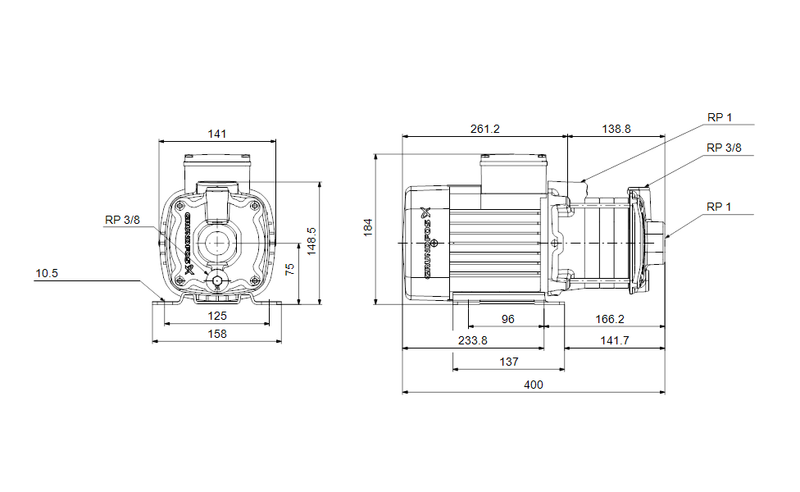

Dimensional Drawing

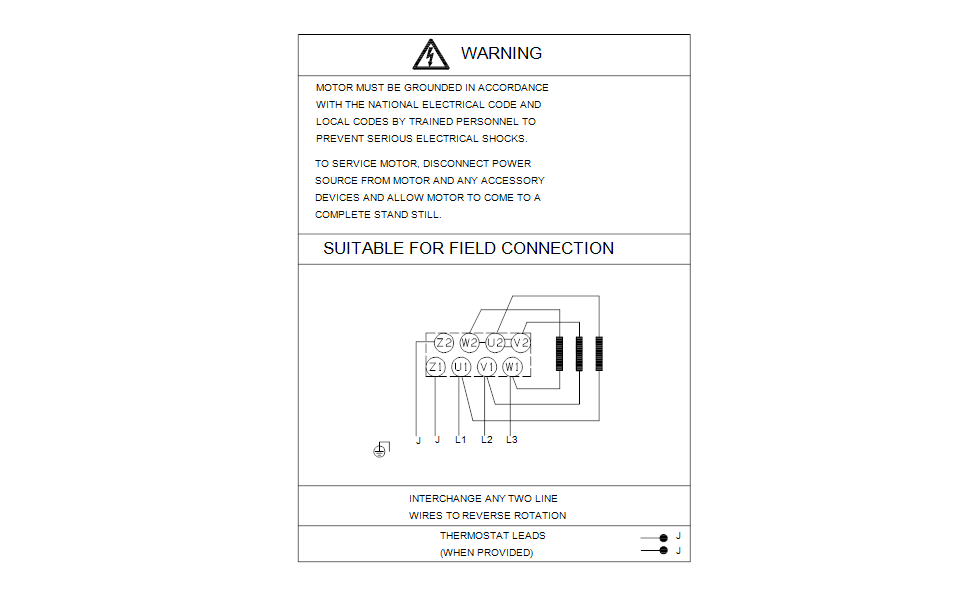

DWiring Diagram
