Grundfos 97567628 - CM 3-5 A-R-G-E-AQQE E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97567628

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 97567628 CM 3-5 A-R-G-E-AQQE E1-A-A-N is a horizontal, end-suction centrifugal pump designed for industrial fluid handling and booster systems used by facility maintenance teams and contractors.

Key features

  • Manufactured by Grundfos for reliable industrial performance
  • Horizontal end-suction centrifugal design suitable for single- and multi-stage applications
  • Delivers consistent flow and pressure for efficient system operation and reduced downtime

Applications

Suitable for building services, commercial booster systems, HVAC, water transfer, and general industrial process circulation where centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97567628

EAN 5700318654487
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80BA
Frequency converter NONE
Gross weight 37.5 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 32.0 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 4
Rated flow 16.4 US gpm
Rated head 162.8 ft
Rated power - P2 1.04 kW
Rated speed 3440-3470 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 80BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

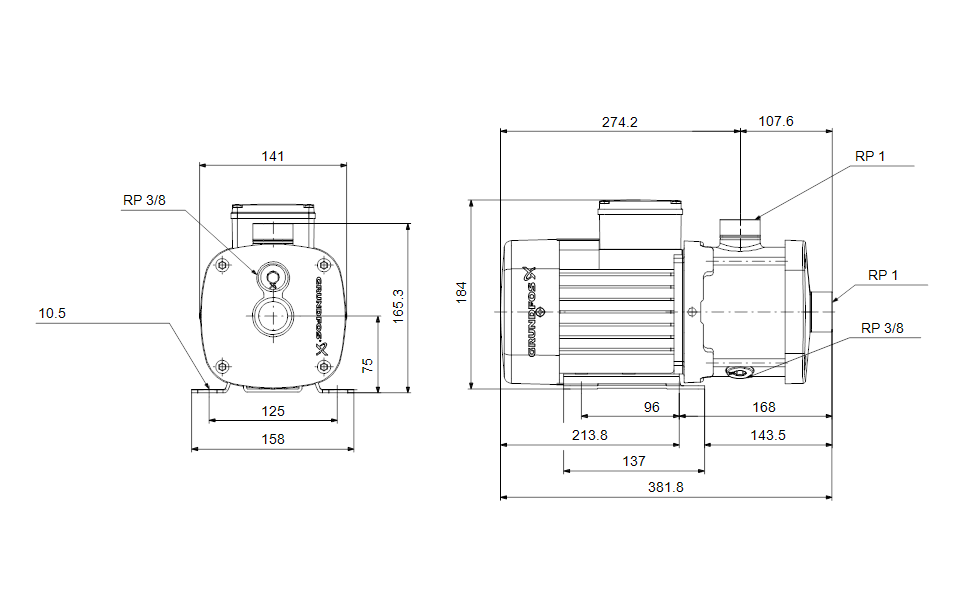

Dimensional Drawing

DWiring Diagram
