Grundfos 97536812 - CM 3-4 A-R-I-E-AQQE G-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97536812

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97536812 - CM 3-4 A-R-I-E-AQQE G-A-A-N is a horizontal, end-suction centrifugal pump designed for industrial and commercial fluid handling. Users include facility maintenance, HVAC technicians, and process engineers seeking a compact, reliable booster or circulation pump.

Key features

  • Manufactured by Grundfos for industrial and commercial applications
  • Horizontal, end-suction centrifugal configuration suitable for close-coupled installations
  • Provides dependable performance for boosting, circulation, and general process duties

Applications

Typical uses include building booster systems, HVAC circulation, light industrial process pumping, and general-purpose fluid transfer where a compact centrifugal solution is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97536812

EAN 5700318169509
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71B
Frequency converter NONE
Gross weight 33.6 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 28.1 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3.6/2.0 A
Rated flow 16.4 US gpm
Rated head 129.4 ft
Rated power - P2 0.43 kW
Rated speed 2904 rpm
Rated voltage 3 x 200 / 346 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71B
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

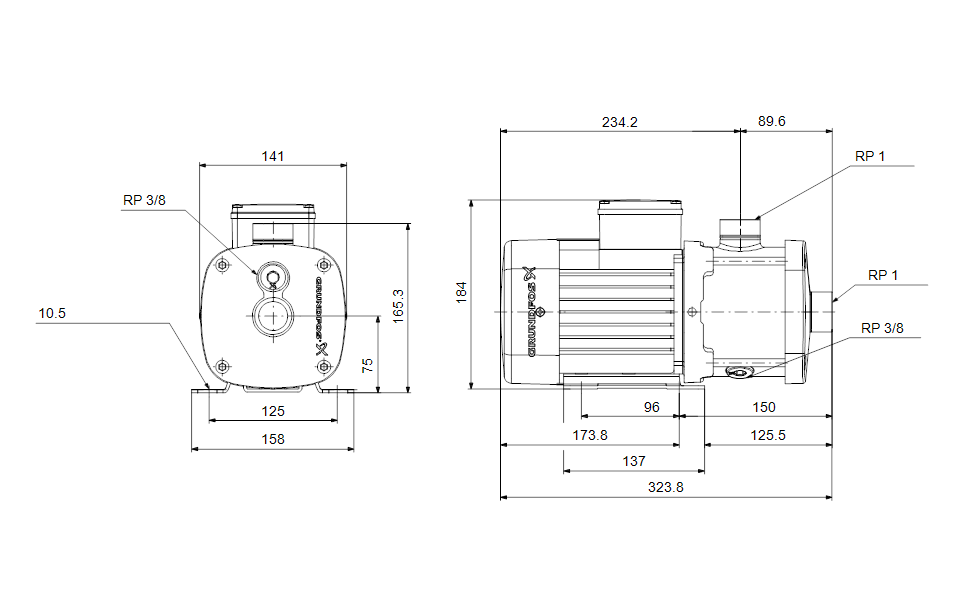

Dimensional Drawing

DWiring Diagram
