Description

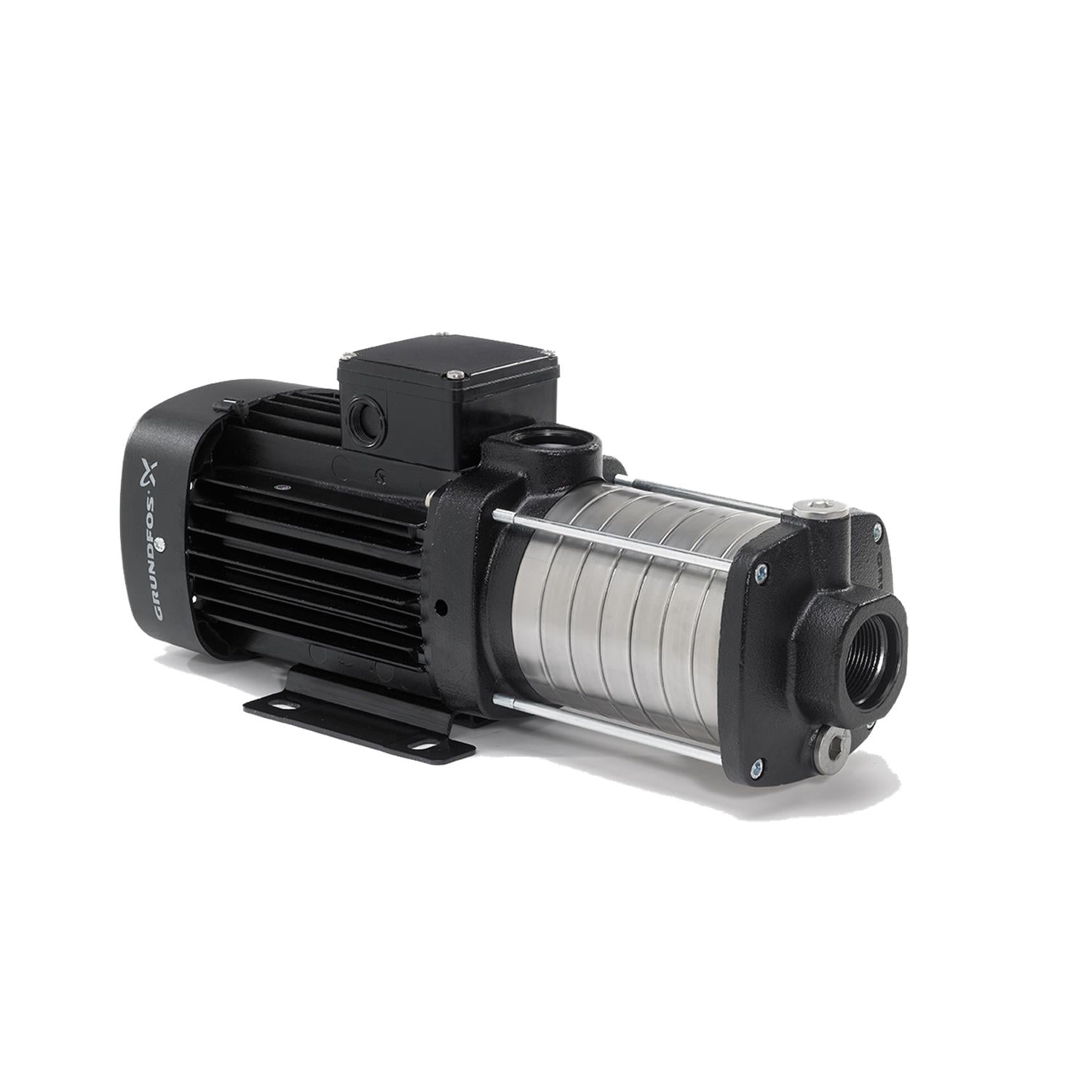

The Grundfos 96807036 (CM 3-4 A-S-A-E-AQQE B-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 16.4US gpm at 130.8ft. Rated 115/230V, 1-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96807036 |
| Product Series | CM |
| Series Description | Horizontal Multistage End-Suction Pump |
| Power | 1.05HP |
| Voltage | 115/230V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3240rpm |
| Pump Speed | 3480rpm |
| Full Load Current | 10,6/5,4A |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 16.4US gpm |
| Nominal Head | 130.8ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1inch |
| Outlet Connection | 1inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | AQQE |
| Approvals / Certifications | CULUS, EAC, CURUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 115/230V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700310919836
- Applications
- Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
- Approvals
- CE
- Approvals for drinking water
- WRAS
- Built-in motor protection
- NONE
- Cable included (Yes/No)
- N
- Code for rubber
- E
- Code for shaft seal
- AQQE
- Connect code
- S
- Connection
- 1 inch
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Frame size
- 80AA
- Frequency converter
- NONE
- Gross weight
- 35.6 lb
- Housing
- Cast iron
- Impeller
- Stainless steel
- Impellers
- 4
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 194 °F
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 35
- Max pressure at stated temp
- 145 psi / 194 °F
- Maximum operating pressure
- 10 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor standard
- NEMA
- Net weight
- 30.1 lb
- Outlet position
- 12
- Product family
- CM
- Pump housing
- Cast iron
- Pump speed on which pump data are based
- 3480 rpm
- Pump version
- A
- Pumped liquid
- Water
- Range of ambient temperature
- -4 .. 131 °F
- Rated current
- 10.6/5.4 A
- Rated flow
- 16.4 US gpm
- Rated head
- 130.8 ft
- Rated power - P2
- 0.78 kW
- Rated speed
- 3240 rpm
- Rated voltage
- 1 x 115/230 V V
- Real Time
- 1 Available on 11/9/2023 Plant: Allentown Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1
- Size
- 80AA
- Size of inlet connection
- 1 inch
- Size of outlet connection
- 1 inch
- Standard
- NEMA
- Starting current
- 300-300 %
- Suitable for 50/60 Hz
- N
- Terminal box position
- 12
- Type of connection
- NPT(F)
- Version
- A

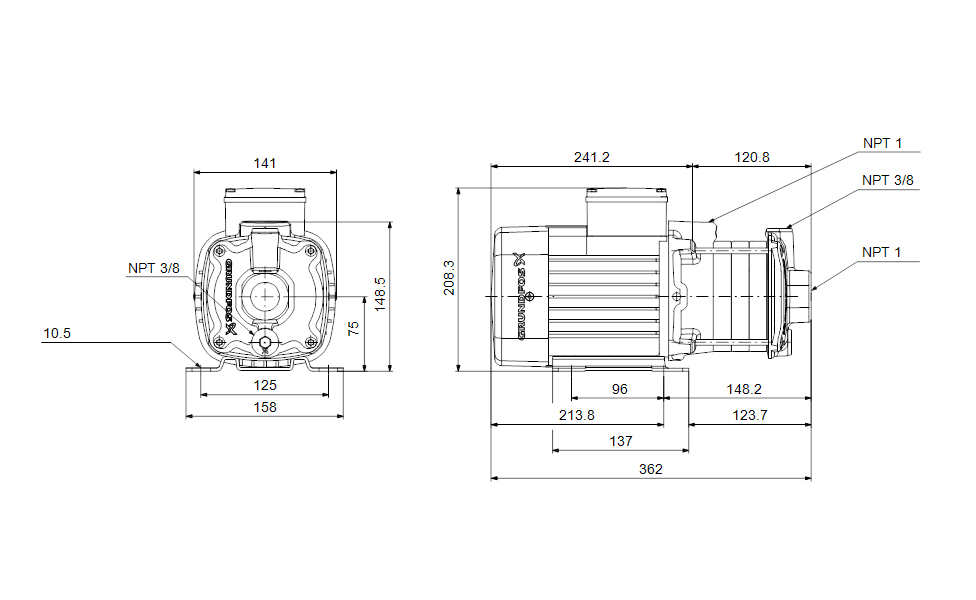

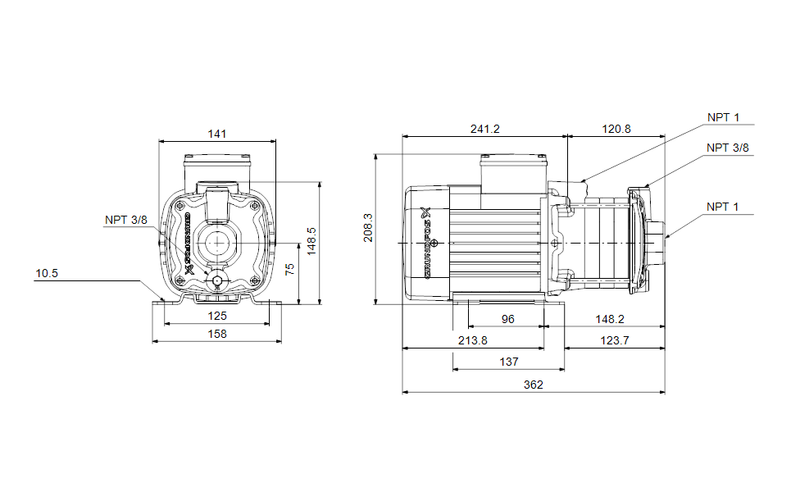

Dimensional Drawing

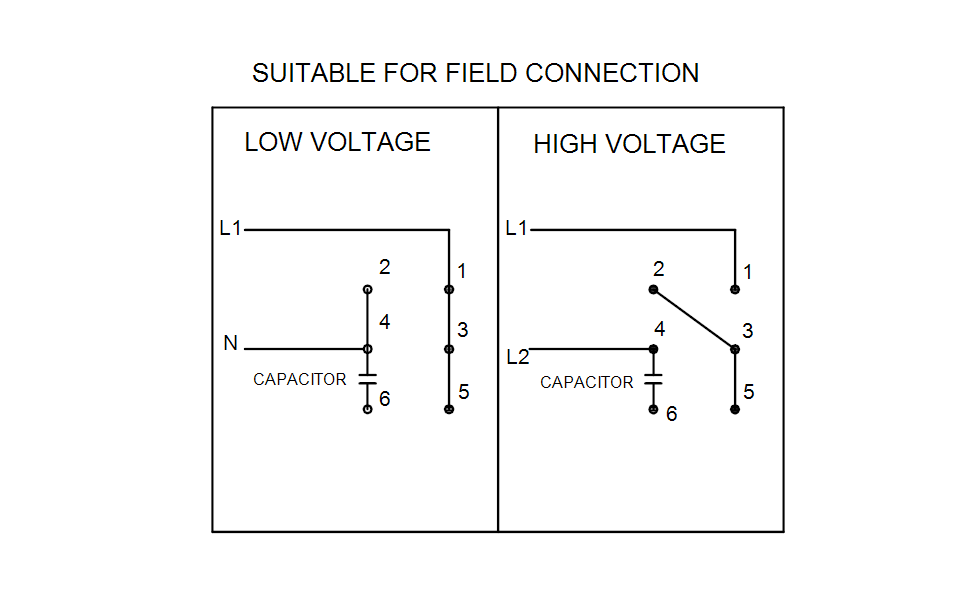

Wiring Diagram
