Grundfos 96806895 - CM 3-4 A-S-G-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $845.94
GRUNDFOSSKU: 96806895

Price:
Sale price$993.06 Regular price$1,839.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806895 - CM 3-4 A-S-G-E-AQQE E-A-A-N is a horizontal, end-suction centrifugal pump suited for industrial and commercial fluid transfer. The model serves technicians and facility maintenance teams seeking a replacement unit from the CM series.

Key features

  • Manufactured for industrial applications within the CM series
  • Horizontal end-suction centrifugal configuration for reliable flow
  • Compact design offers straightforward installation and simplified maintenance

Applications

Typical uses include water transfer, booster service, HVAC circulation, and general process pumping where a compact centrifugal unit is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806895

EAN 5700310918426
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 33.6 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 28.1 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3
Rated flow 16.4 US gpm
Rated head 129.4 ft
Rated power - P2 0.74 kW
Rated speed 3220-3370 rpm
Rated voltage 3 x 220-230YY/440-480Y V
Real Time 1 Available on 11/8/2023 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

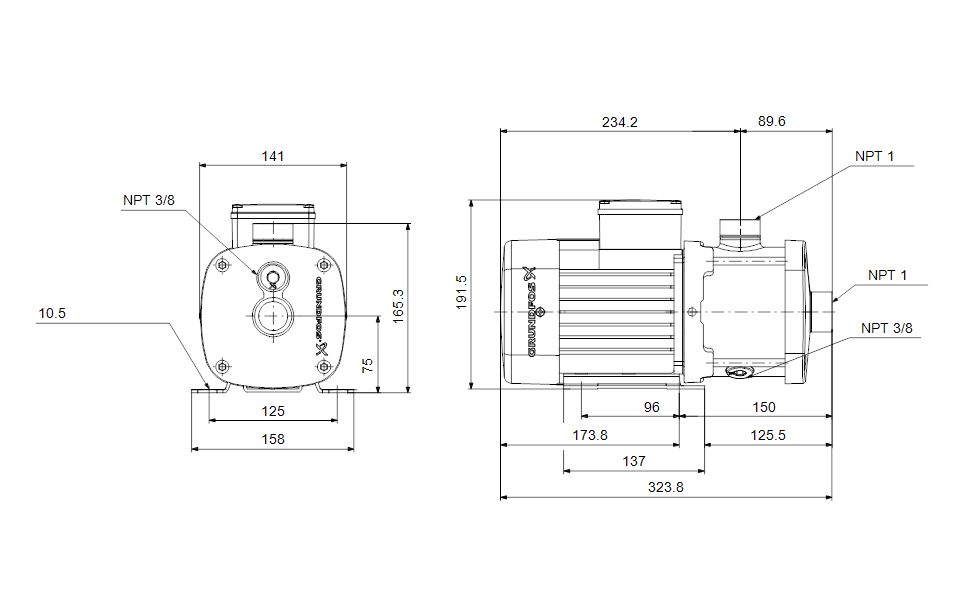

Dimensional Drawing

DWiring Diagram
