Grundfos 96806822 - CM 3-4 A-R-G-V-AQQV F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96806822

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806822 (CM 3-4 A-R-G-V-AQQV F-A-A-N) is a horizontal, end-suction centrifugal pump designed for industrial fluid transfer and booster systems, suited to operators and maintenance teams needing a compact, serviceable unit.

Key features

  • Horizontal end-suction centrifugal configuration for general-purpose pumping
  • Compatible with CM/CME series applications including booster and close-coupled setups
  • Robust, service-friendly design offering reliable performance and easier maintenance

Applications

Common uses include building services, pressure boosting, HVAC circulation, and light industrial process pumping where CM series centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806822

EAN 5700310917696
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71A
Frequency converter NONE
Gross weight 32.1 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 26.6 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2
Rated flow 13.6 US gpm
Rated head 89.87 ft
Rated power - P2 0.46 kW
Rated speed 2770-2820 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71A
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 490-530 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

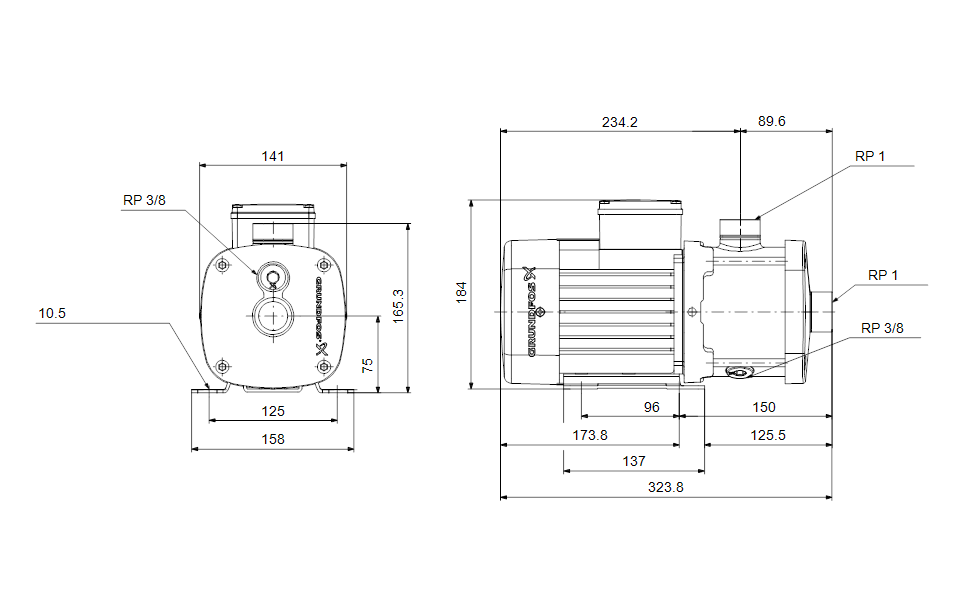

Dimensional Drawing

DWiring Diagram
