Grundfos 97855513 - CM 3-3 A-S-A-V-AVBV E-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97855513

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97855513 - CM 3-3 A-S-A-V-AVBV E-A-A-N

The Grundfos 97855513 - CM 3-3 A-S-A-V-AVBV E-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for reliability and efficiency, making it an ideal choice for both single and multi-stage pumping needs.

With its robust construction and advanced design, the CM 3-3 model ensures optimal performance in demanding environments. This centrifugal pump is perfect for boosting pressure and transferring fluids in various systems, providing a dependable solution for your pumping requirements.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97855513. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710625886501
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AVBV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 31.9 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 26.4 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 3
Rated flow 16.4 US gpm
Rated head 97.4 ft
Rated power - P2 0.74 kW
Rated speed 3220-3370 rpm
Rated voltage 3 x 220-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

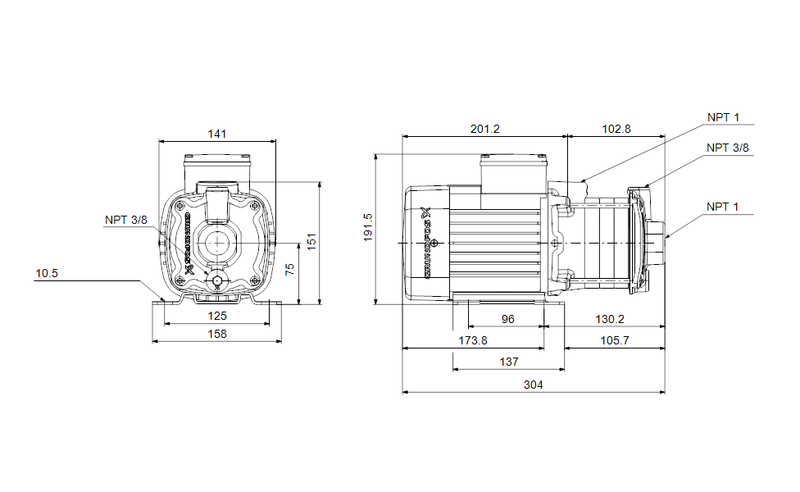

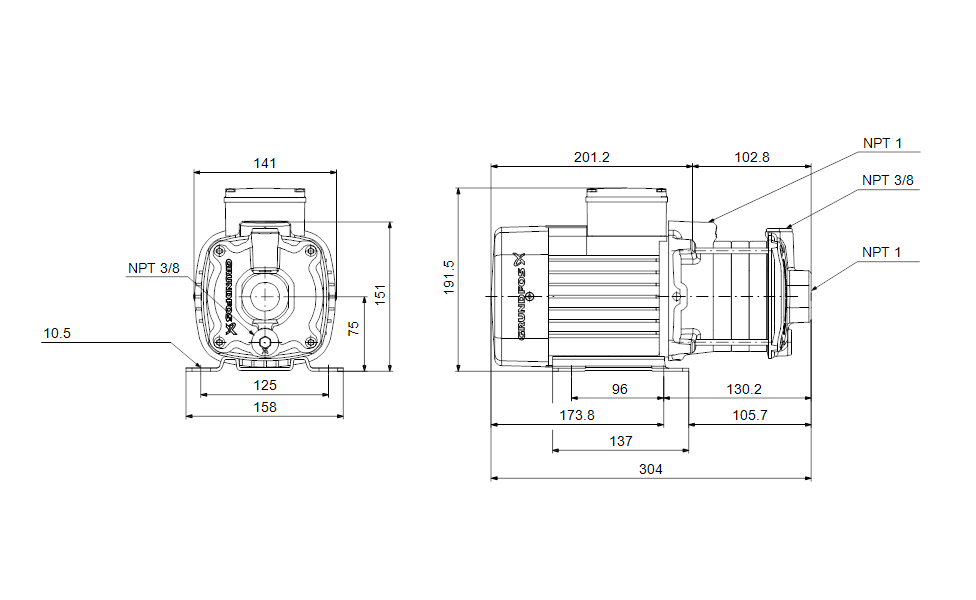

Dimensional Drawing

DWiring Diagram
