Grundfos 97521727 - CM 3-3 A-R-A-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 97521727

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 97521727 CM 3-3 A-R-A-V-AQQV J-A-A-N is a horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer tasks, commonly used by maintenance technicians and facility engineers.

Key features

  • Manufactured by Grundfos for reliable industrial performance
  • Design cues indicate a centrifugal, close-coupled, horizontal configuration
  • Delivers efficient fluid transfer and straightforward serviceability for routine maintenance

Applications

Typical uses include booster systems, HVAC circulation, general plant water transfer, and light-duty process duties where a compact horizontal centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97521727

EAN 5700317577633
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 31.9 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 26.4 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1.4-1.5 A
Rated flow 16.4 US gpm
Rated head 97.4 ft
Rated power - P2 0.43 kW
Rated speed 2860-2890 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 550-600 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

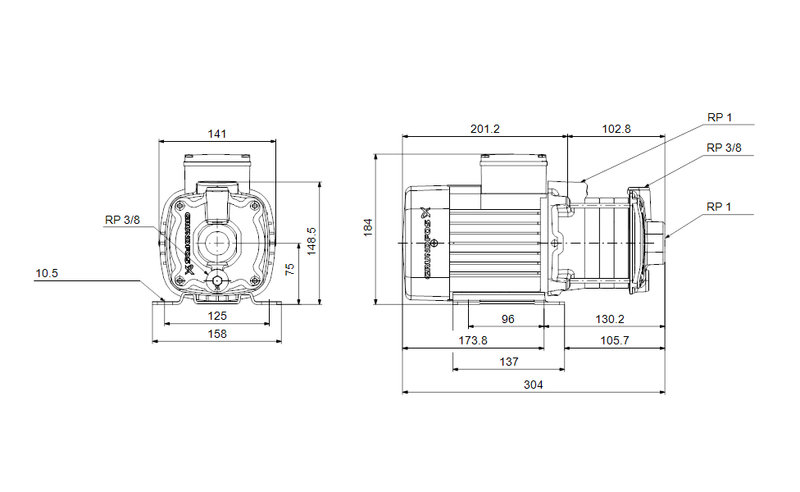

Dimensional Drawing

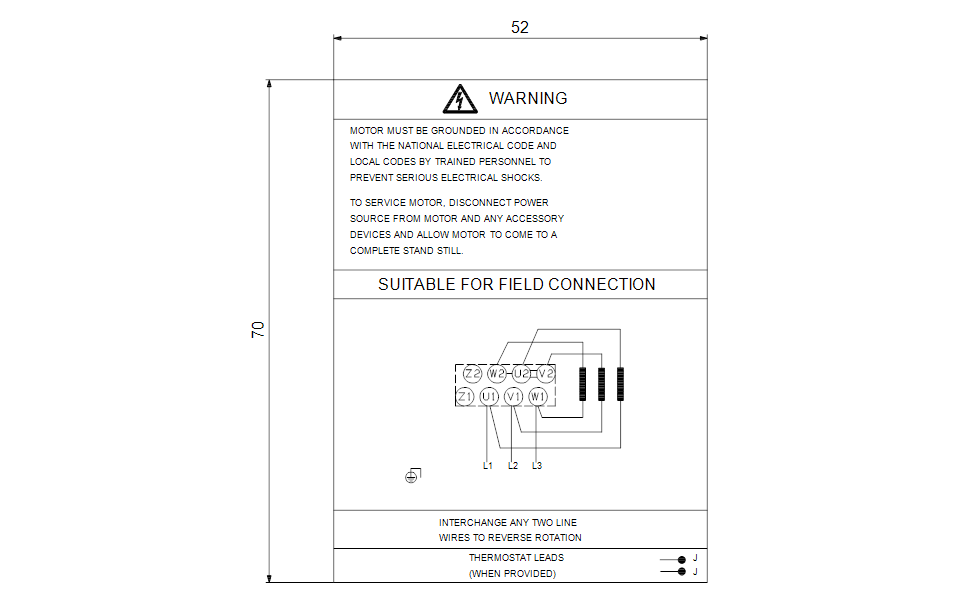

DWiring Diagram
