Grundfos 96961044 - CM 3-3 A-S-I-V-AQQV B-A-A-N | Horizontal | End Suction | Centrifugal

Save $724.50
GRUNDFOSSKU: 96961044

Price:
Sale price$850.50 Regular price$1,575.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96961044 is a centrifugal end-suction pump (CM 3-3 A-S-I-V-AQQV B-A-A-N) designed for industrial and commercial fluid transfer applications, suited for technicians and facility maintenance teams.

Key features

  • Manufactured by Grundfos for robust industrial performance
  • Horizontal end-suction centrifugal configuration common to CM/CME series
  • Provides reliable flow and pressure control for booster and multistage setups

Applications

Ideal for building services, booster systems, HVAC, water transfer, and other general centrifugal pump duties where CM-series compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96961044

EAN 5700314823986
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71BA
Frequency converter NONE
Gross weight 32.9 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 27.4 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 7.6/3.9 A
Rated flow 16.4 US gpm
Rated head 96.03 ft
Rated power - P2 0.6 kW
Rated speed 3240 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 260-260 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

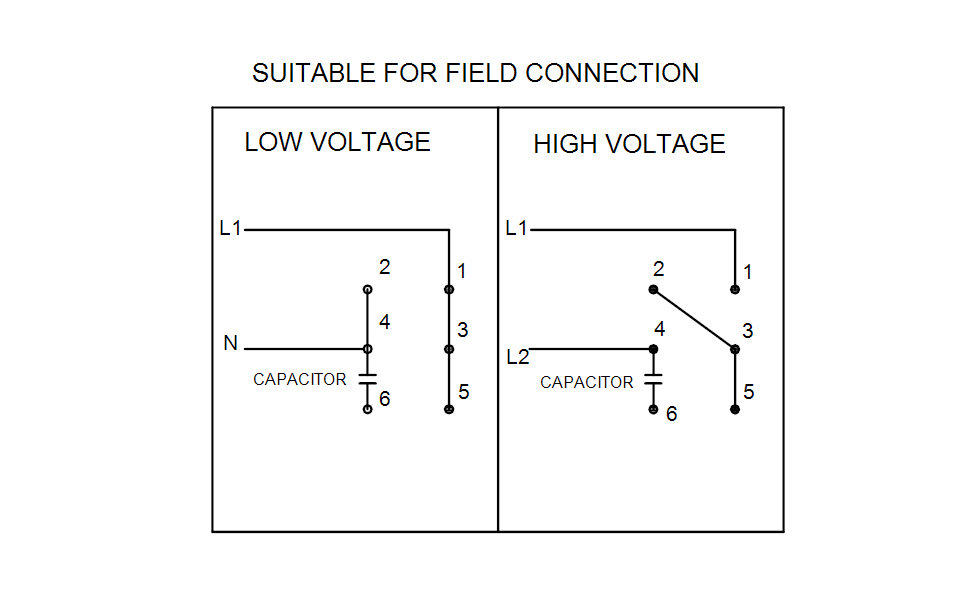

DWiring Diagram
