Grundfos 96806830 - CM 3-3 A-R-A-E-AVBE F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96806830

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CM 3-3 A-R-A-E-AVBE F-A-A-N is a horizontal, end-suction centrifugal pump suitable for industrial and commercial fluid handling. It fits installations requiring reliable single- or multistage centrifugal performance and is used by service technicians and plant operators.

Key features

  • Designed for centrifugal pumping duties across CM and CMcme series applications
  • Suitable for horizontal and close-coupled installations per common shop-type categories
  • Provides dependable booster and multistage performance for general process needs

Applications

Typical uses include building services, water transfer, booster systems, and light industrial process pumping where end-suction centrifugal units are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806830

EAN 5700310917771
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AVBE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71A
Frequency converter NONE
Gross weight 30.4 lb
Housing Cast iron
IE Efficiency class IE2
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 24.9 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 2
Rated flow 13.6 US gpm
Rated head 67.62 ft
Rated power - P2 0.46 kW
Rated speed 2770-2820 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71A
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 490-530 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

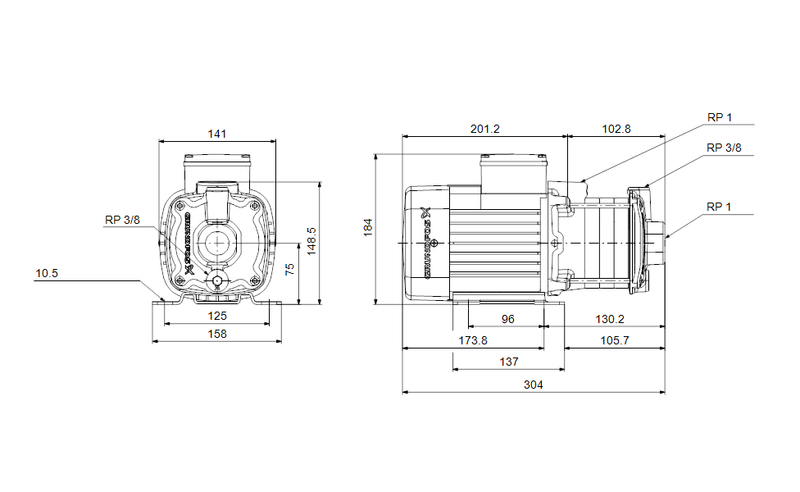

Dimensional Drawing

DWiring Diagram
