Grundfos 96807035 - CM 3-2 A-S-A-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $432.86
GRUNDFOSSKU: 96807035

Price:
Sale price$508.14 Regular price$941.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96807035 is a CM series horizontal end-suction centrifugal pump suited for industrial and commercial fluid transfer. It fits installations requiring a compact, reliable centrifugal unit and is used by maintenance, facilities, and process engineers.

Key features

  • Built for industrial pumping applications with horizontal, end-suction configuration
  • CM series design cues for single- and multi-stage centrifugal duty
  • Compact footprint for easier installation and maintenance

Applications

Typical uses include water transfer, booster systems, HVAC circulation, and general process pumping where a horizontal end-suction centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96807035

EAN 5700310919829
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71AA
Frequency converter NONE
Gross weight 29.8 lb
Housing Cast iron
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 24.3 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 1
Rated flow 16.4 US gpm
Rated head 64.01 ft
Rated power - P2 0.43 kW
Rated speed 3360-3420 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 71AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

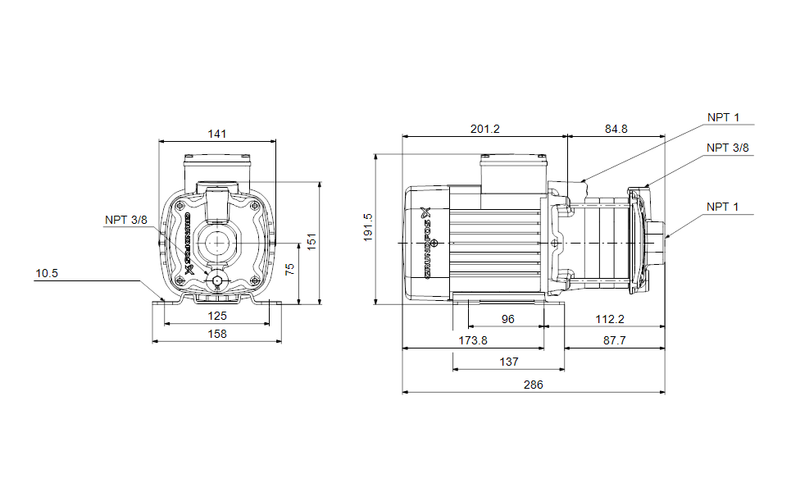

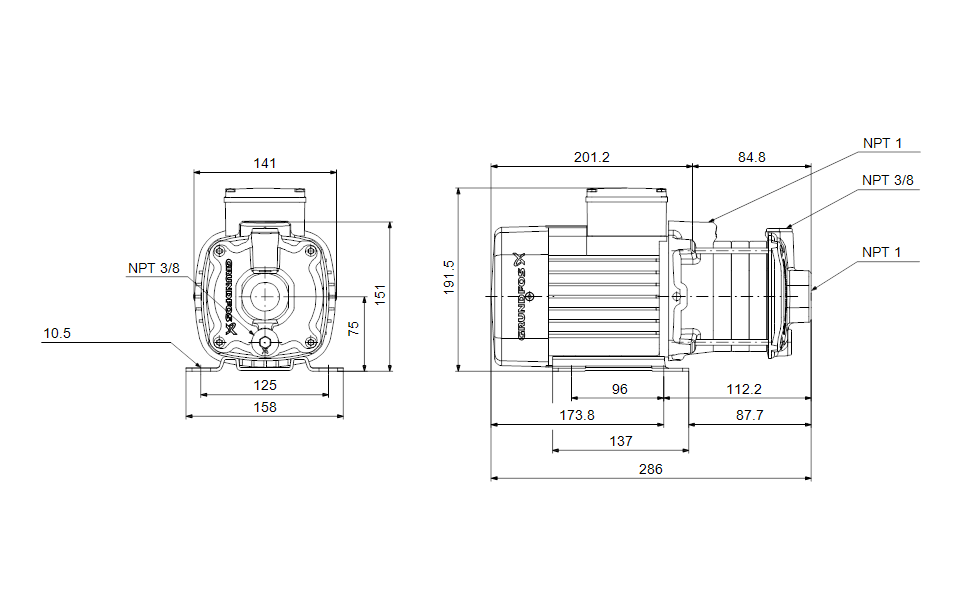

Dimensional Drawing

DWiring Diagram
