Grundfos 96806916 - CM 3-2 A-S-G-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 96806916

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806916 - CM 3-2 A-S-G-V-AQQV H-A-A-N is a horizontal end-suction centrifugal pump used in industrial and commercial fluid-handling systems. It suits operators needing a compact, reliable pump for boosting and general transfer duties.

Key features

  • Manufactured for industrial applications with the CM series design
  • Compatible with CM/CME line and common centrifugal, close-coupled, and multistage installations
  • End-suction centrifugal layout delivers dependable fluid transfer and system boosting

Applications

Typical uses include booster systems, HVAC and building services, water supply and transfer, irrigation, and general industrial process pumping.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806916

EAN 5700310918631
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 71AA
Frequency converter NONE
Gross weight 31.2 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 25.7 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 0.7 A
Rated flow 16.4 US gpm
Rated head 62.67 ft
Rated power - P2 0.43 kW
Rated speed 3340 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 71AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

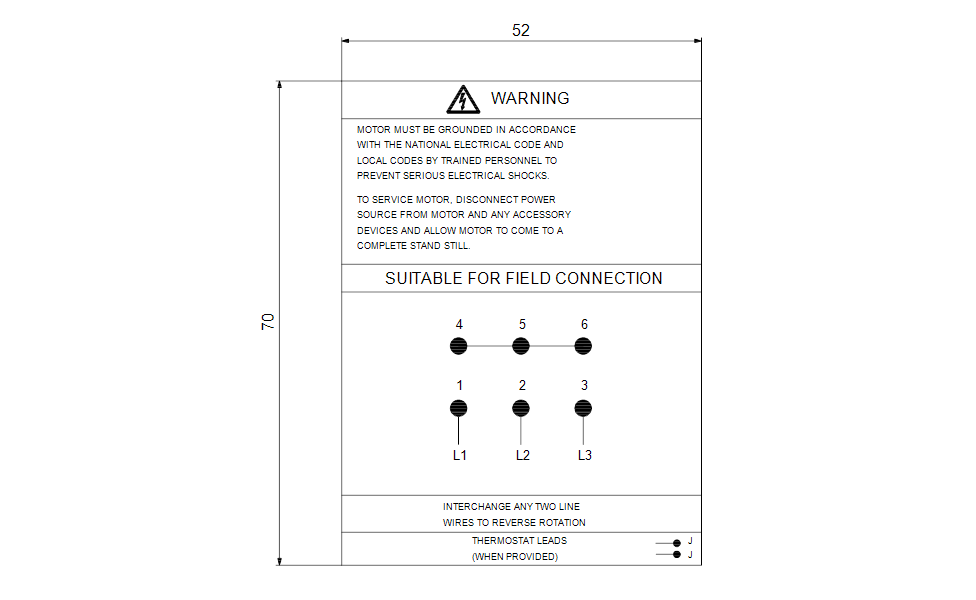

DWiring Diagram
