Grundfos 99059802 - CM 3-10 A-R-I-E-AQQE F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99059802

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99059802 is a horizontal end-suction centrifugal pump from the CM series used in industrial and building services settings; it fits applications calling for CM booster and close-coupled centrifugal equipment and is intended for technicians and maintenance teams.

Key features

  • Manufactured by Grundfos for reliable integration with CM-series systems
  • Suitable for booster, close-coupled, and horizontal multistage centrifugal applications
  • Compact horizontal end-suction design for straightforward installation and serviceability

Applications

Typical uses include building pressure boosting, HVAC circulation, light industrial process water handling, and general centrifugal pump replacement tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99059802

EAN 5712605983163
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90SD
Frequency converter NONE
Gross weight 58.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 10
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Mains frequency 50 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 52.5 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5.70/3.30 A
Rated flow 13.6 US gpm
Rated head 229 ft
Rated power - P2 1.5 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 90SD
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard IEC
Starting current 710-790 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

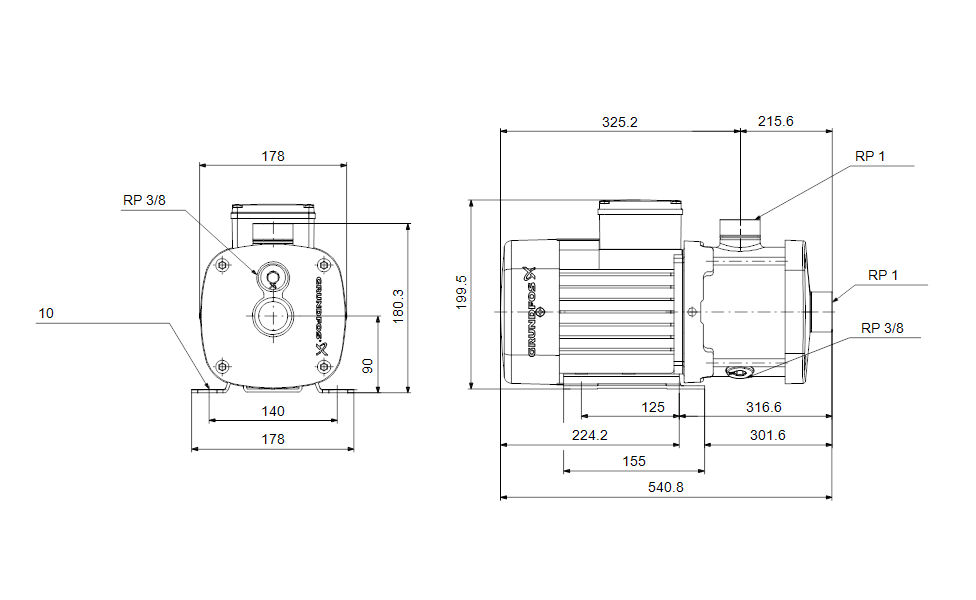

Dimensional Drawing

DWiring Diagram
