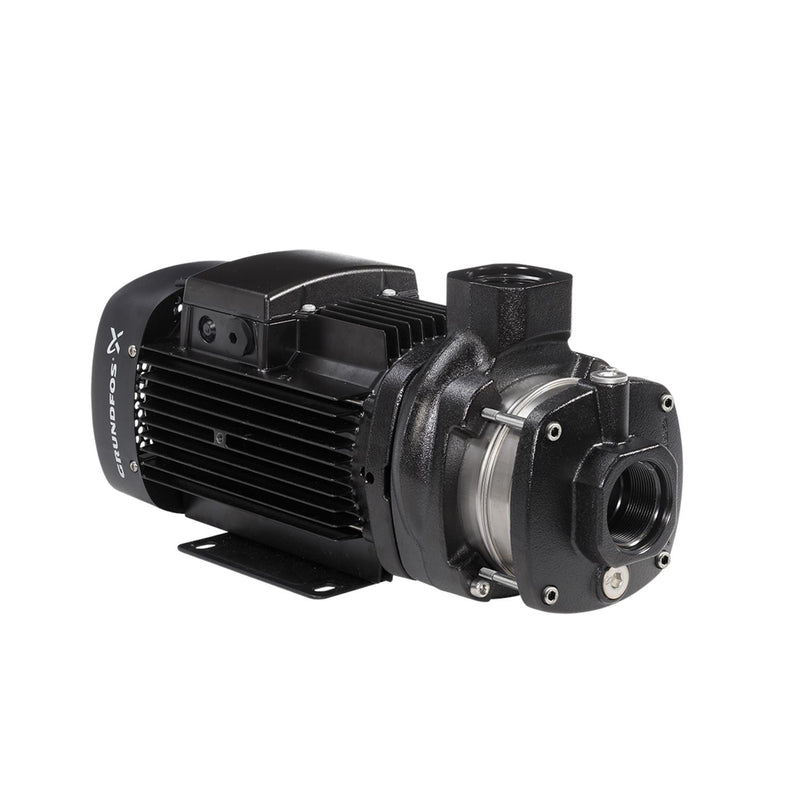

Grundfos 99059749 - CM 25-2 A-S-A-E-AQQE E-A-A-N | Horizontal | End Suction | Centrifugal

Save $1,958.68
GRUNDFOSSKU: 99059749

Price:
Sale price$2,299.32 Regular price$4,258.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99059749 is a CM series centrifugal pump (CM 25-2 A-S-A-E-AQQE E-A-A-N) suitable for horizontal, end-suction installations; it’s commonly used by industrial and commercial service technicians and maintenance teams.

Key features

  • OEM-manufactured unit intended for various industrial applications
  • Horizontal end-suction centrifugal configuration for compact footprint
  • Supports booster and multistage pumping needs for consistent flow and pressure

Applications

General water transfer, booster systems, HVAC circulation, light industrial process supply, and other centrifugal pump duties where a compact horizontal unit is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99059749

EAN 5712605981787
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132EB
Frequency converter NONE
Gross weight 125.0 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 119.0 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 23
Rated flow 116 US gpm
Rated head 154.1 ft
Rated power - P2 6.4 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time 1 Available on 1/5/2024 Plant: Allentown  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 132EB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

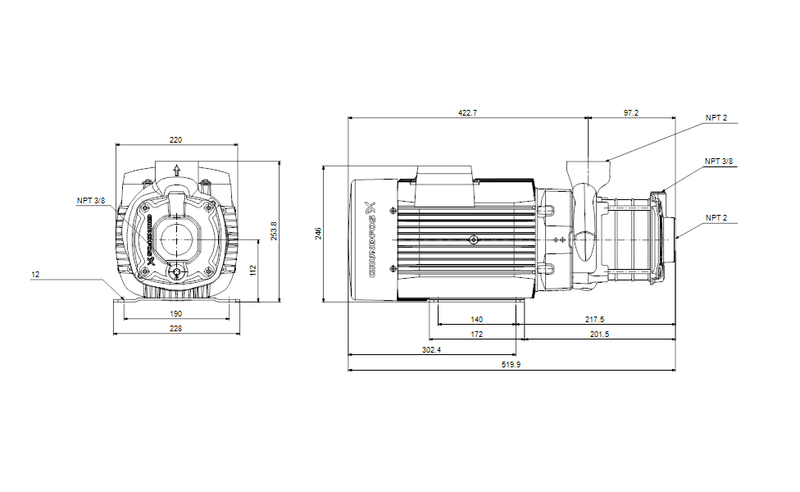

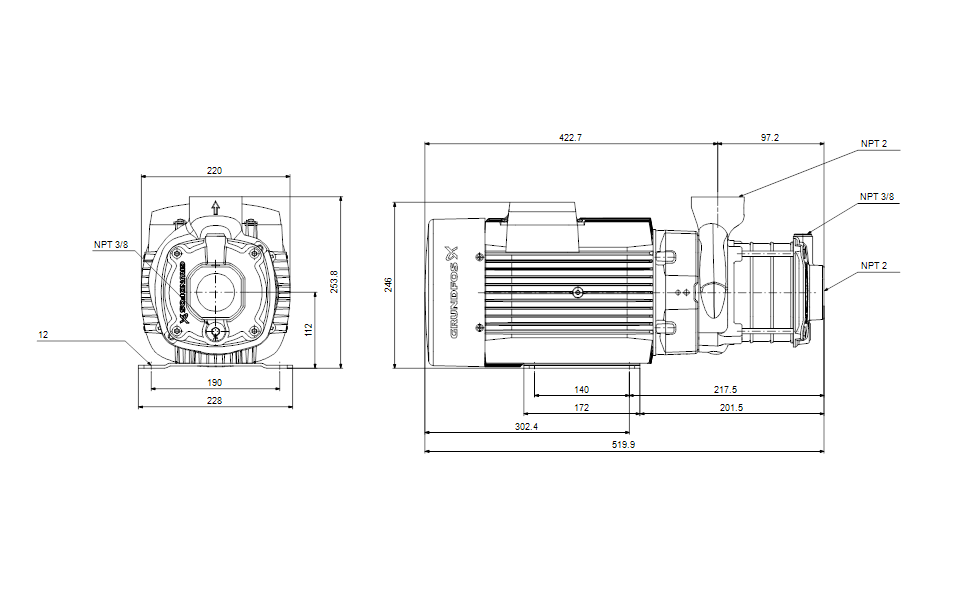

Dimensional Drawing

DWiring Diagram
