Grundfos 98788567 - CM 25-2 A-R-A-V-AQQV J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98788567

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98788567 is a CM 25-2 horizontal end-suction centrifugal pump suited for industrial and commercial fluid handling. Technicians and maintenance teams use this pump for routine service, replacement, or system upgrades.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement scenarios
  • End-suction centrifugal design suitable for horizontal, close-coupled or multistage layouts (per tags)
  • Reliable performance for boosting, circulation, and general-purpose pumping, reducing downtime during repairs

Applications

Typical uses include booster systems, HVAC circulation, light industrial process water, and general centrifugal pump replacements where a compact horizontal unit is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98788567

EAN 5712601401920
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132EB
Frequency converter NONE
Gross weight 125.0 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 119.0 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9.45-10.6 A
Rated flow 116 US gpm
Rated head 154.1 ft
Rated power - P2 3.7 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 132EB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Starting current 1660-1690 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

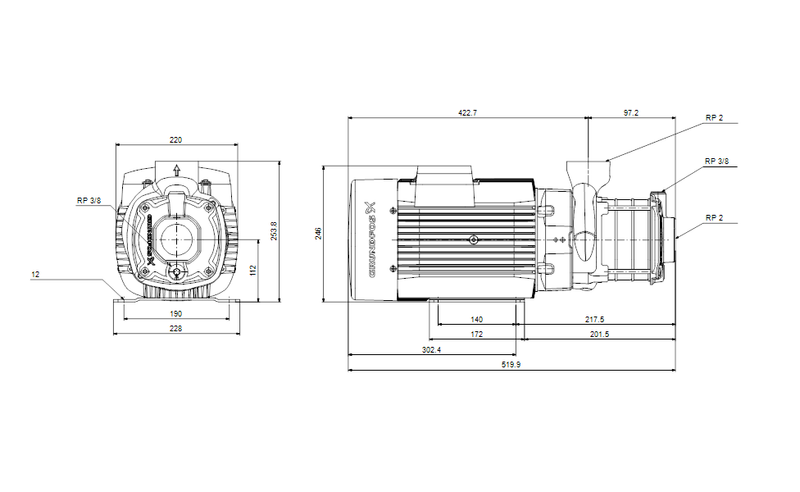

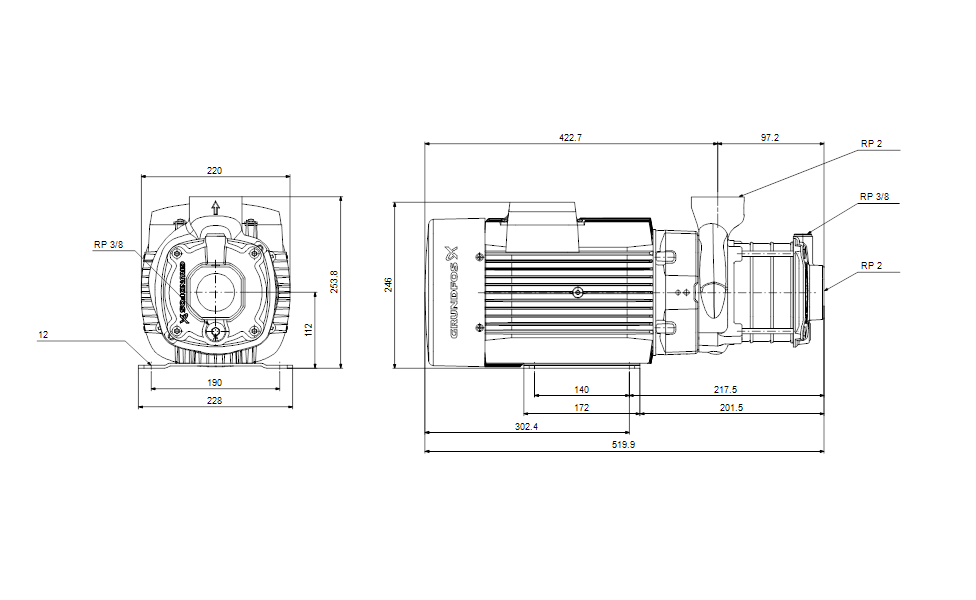

Dimensional Drawing

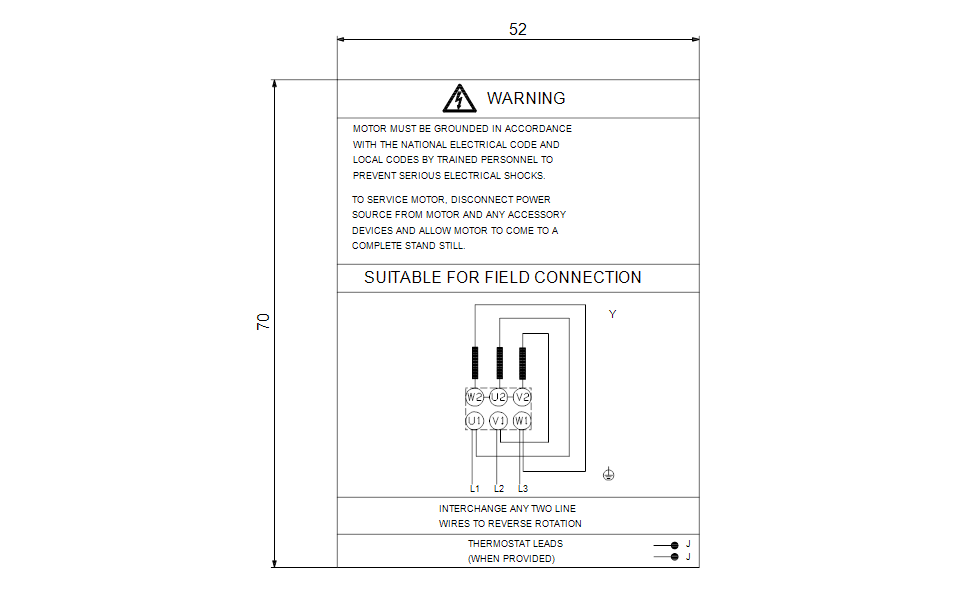

DWiring Diagram
