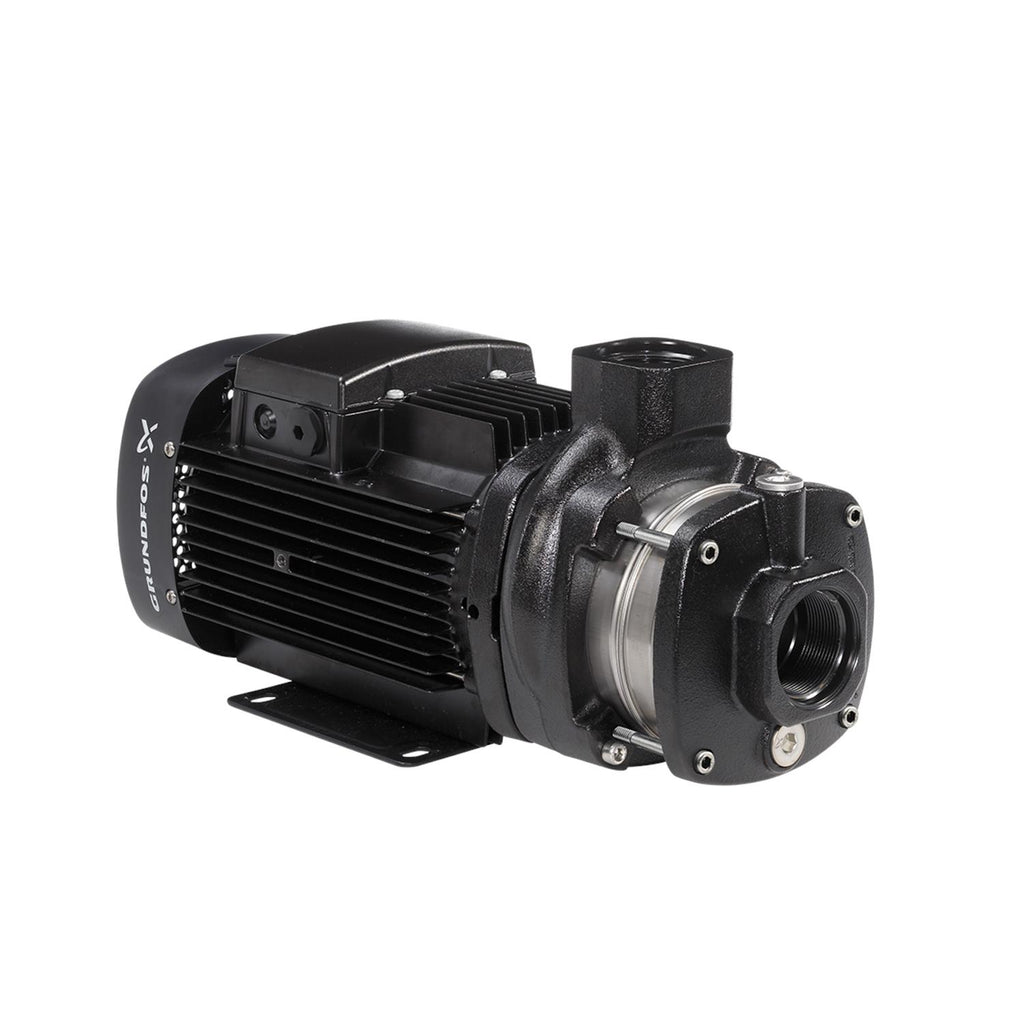

Grundfos 98667857 - CM 25-2 A-R-A-E-AQQE J-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98667857

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98667857 is a CM 25-2 horizontal end-suction centrifugal pump designed for industrial and commercial fluid handling. It fits CM-series installations and is used by maintenance, facilities, and process technicians.

Key features

  • Horizontal end-suction centrifugal design for compact installation
  • Compatible with CM series, close-coupled and multi-stage applications
  • Reliable fluid transfer and booster performance for general industrial use

Applications

Typical uses include HVAC circulation, water supply boosting, condensate transfer, and general process fluid handling in commercial and light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98667857

EAN 5711499257909
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 132EB
Frequency converter NONE
Gross weight 125.0 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 119.0 lb
Outlet position 12
Product family CM
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9.45-10.6 A
Rated flow 116 US gpm
Rated head 154.1 ft
Rated power - P2 3.7 kW
Rated speed 2960-2970 rpm
Rated voltage 3 x 380-415 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size 132EB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Starting current 1660-1690 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

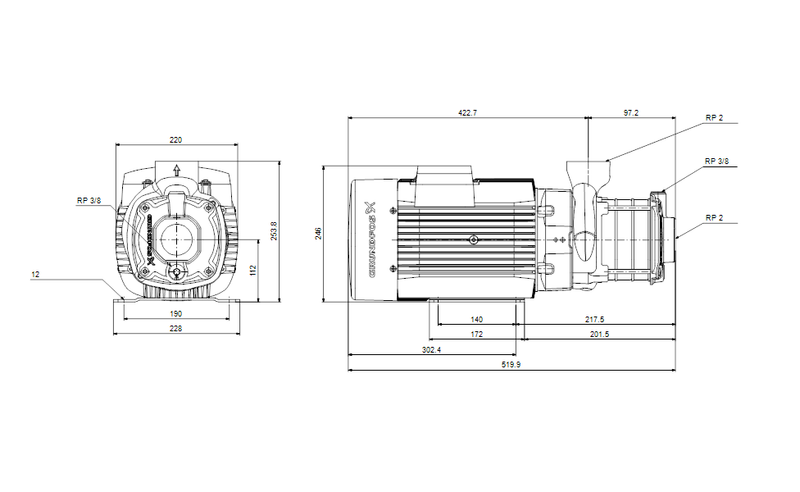

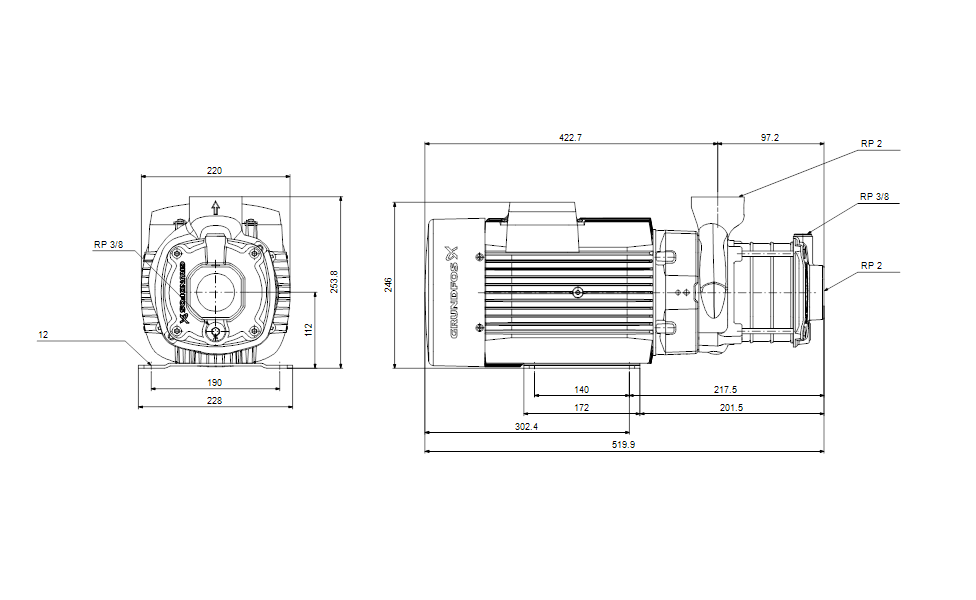

Dimensional Drawing

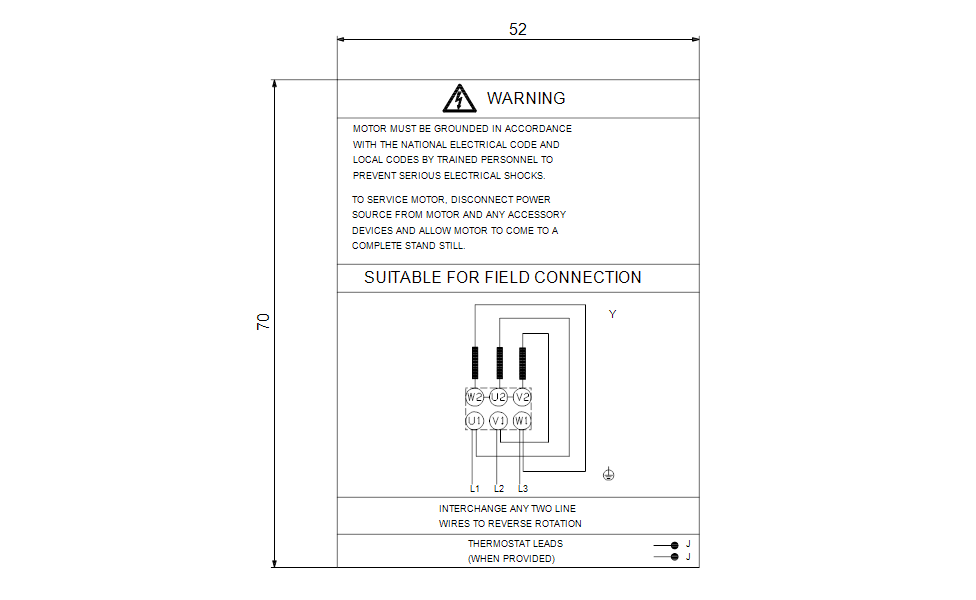

DWiring Diagram
