Grundfos 98584251 - CM 25-1 A-R-I-V-AQQV E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 98584251

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98584251 - CM 25-1 A-R-I-V-AQQV E1-A-A-N Centrifugal Pump

The Grundfos 98584251 - CM 25-1 A-R-I-V-AQQV E1-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures reliable operation and efficiency in fluid handling.

This centrifugal pump is ideal for boosting pressure, transferring liquids, and other applications requiring a robust and dependable pumping solution. With its close-coupled design, the CM 25-1 offers easy installation and maintenance, making it a preferred choice for professionals in the industry.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5711497652416
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 100BB
Frequency converter NONE
Gross weight 82.6 lb
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.41
Model A
Motor standard IEC
Net weight 77.1 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 14
Rated flow 116 US gpm
Rated head 62.57 ft
Rated power - P2 4 kW
Rated speed 3520-3530 rpm
Rated voltage 3 x 220-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 100BB
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard IEC
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

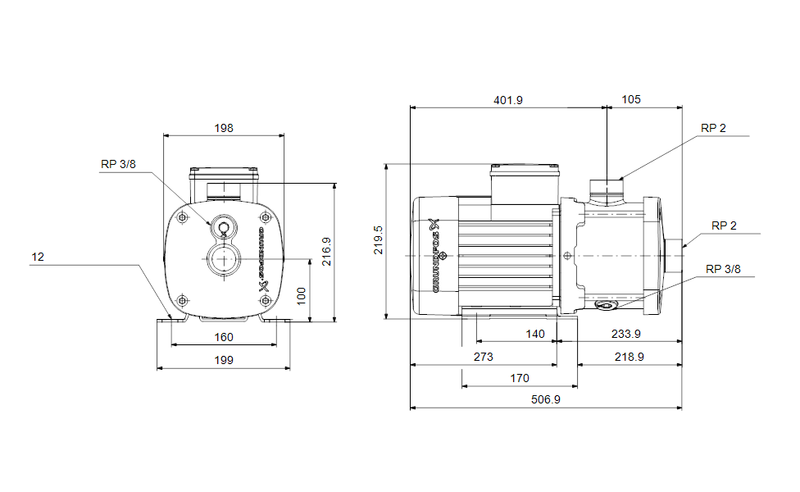

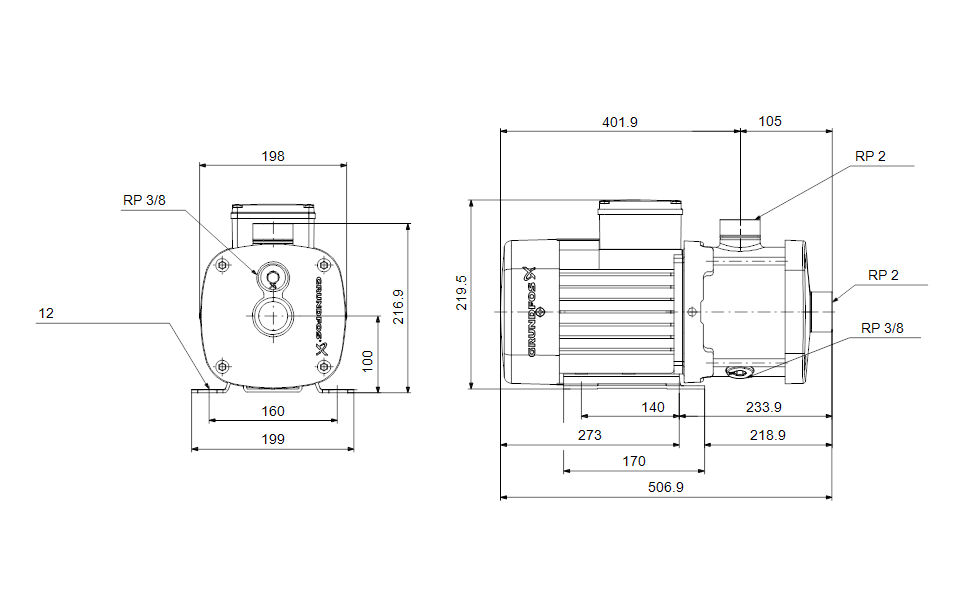

Dimensional Drawing

DWiring Diagram
