Grundfos 92718633 - CM 25-1 A-S-A-V-AQQV F-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 92718633

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92718633 - CM 25-1 A-S-A-V-AQQV F-A-A-N

The Grundfos 92718633 - CM 25-1 A-S-A-V-AQQV F-A-A-N is a high-performance horizontal end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for both single and multi-stage pumping needs.

As a part of the CM Service Special series, this pump is perfect for those looking to enhance their system's efficiency. It is categorized under various types including Booster, Centrifugal, Close Coupled, and Horizontal Multistage pumps, ensuring versatility for different operational requirements.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, please do not hesitate to contact us. Our team is here to help you find the perfect solution for your pumping needs.

EAN 5715118602590
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 90LE
Frequency converter NONE
Gross weight 78.2 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 72.7 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 8.00/4.60 A
Rated flow 96.9 US gpm
Rated head 53.1 ft
Rated power - P2 2.2 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 90LE
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 840-920 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

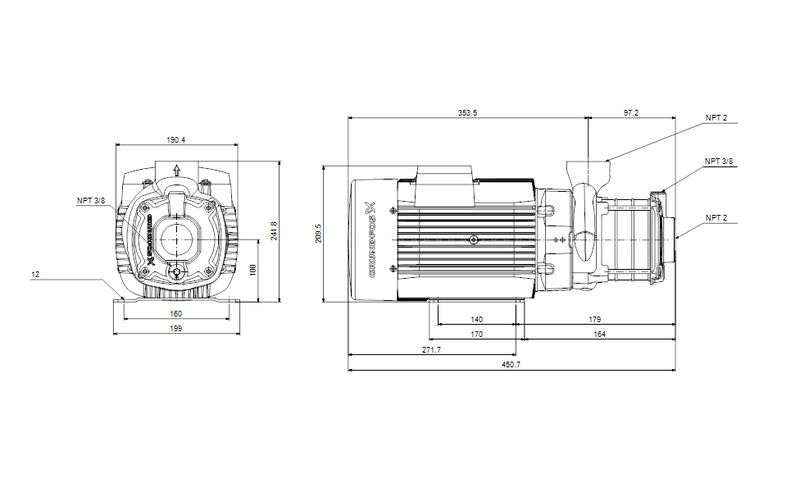

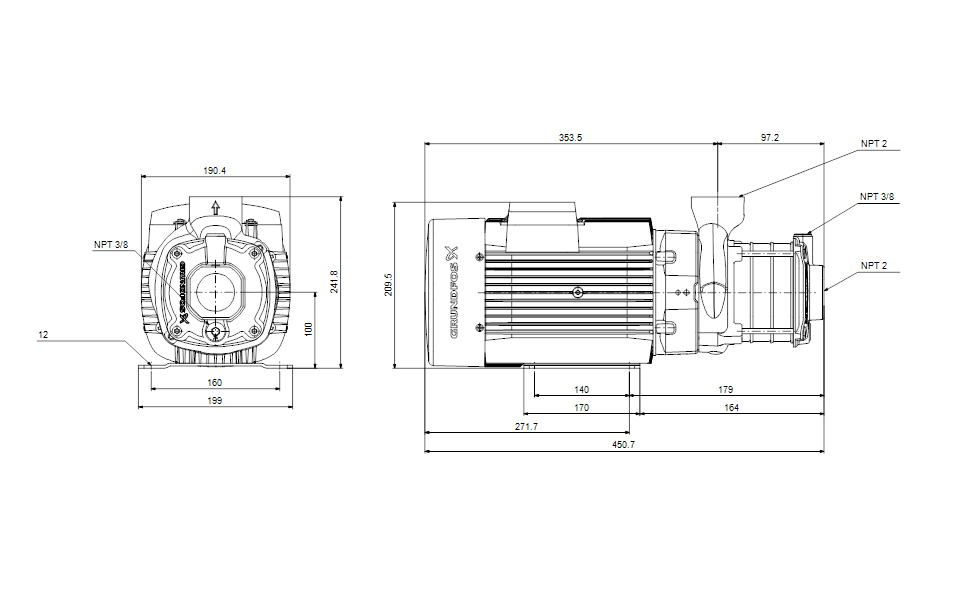

Dimensional Drawing

DWiring Diagram
