Grundfos 92709119 - CM 25-1 A-S-A-V-AQQV O-A-A-N | Horizontal | End Suction | Centrifugal

GrundfosSKU: 92709119

Price:
Sale price$5,029.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CM 25-1 A-S-A-V-AQQV O-A-A-N · Horizontal Multistage End-Suction Pump
CM5.36HP220-255D/380-440YV3.0-Phase60 HzIE3 / NEMA PremiumIP55Stainless steel

The Grundfos 92709119 (CM 25-1 A-S-A-V-AQQV O-A-A-N) is a Horizontal Multistage End-Suction Pump. Reliable, quiet, compact horizontal end-suction pump. Modular design for flexible performance selection. For water supply, pressure boosting, and liquid transfer. Nominal performance: 116US gpm at 76.46ft. Rated 220-255D/380-440YV, 3.0-Phase, 60 Hz.

Power
5.36HP
Voltage
220-255D/380-440YV
Phase
3.0-Phase
Max Flow
116US gpm
Max Head
76.46ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CM 25-1 A-S-A-V-AQQV O-A-A-N
Series: CM
Model Code: CM 25-1 A-S-A-V-AQQV O-A-A-N
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AQQV
Technical Specifications
Model Number 92709119
Product Series CM
Series Description Horizontal Multistage End-Suction Pump
Power 5.36HP
Voltage 220-255D/380-440YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3520-3540rpm
Pump Speed 3480rpm
Full Load Current 14,0-12,8/8,05-7,35A
Motor Protection PTC
Motor Efficiency Class IE3 / NEMA Premium
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 116US gpm
Nominal Head 76.46ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 194°F
Max Ambient Temperature 131°F
Inlet Connection 2inch
Outlet Connection 2inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal AQQV
Approvals / Certifications CE, EAC, CURUS, UKCA
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-255D/380-440YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CM pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CM Series
✓ Product Data Sheet — CM 25-1 A-S-A-V-AQQV O-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715118471929
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection PTC
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112CA
Frequency converter NONE
Gross weight 116.0 lb
Housing Cast iron
IE Efficiency class IE3
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 111.0 lb
Pump housing Cast iron
Pump speed on which pump data are based 2900 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 9
Rated flow 116 US gpm
Rated head 76.46 ft
Rated power - P2 2.3 kW
Rated speed 2970-2970 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time 1 Available on 10/12/2023 Plant: Allentown  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 112CA
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Starting current 1600-1640 %
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

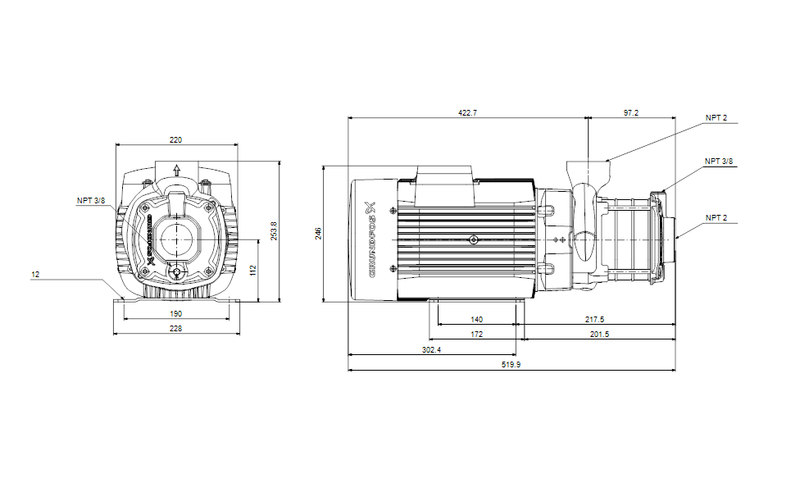

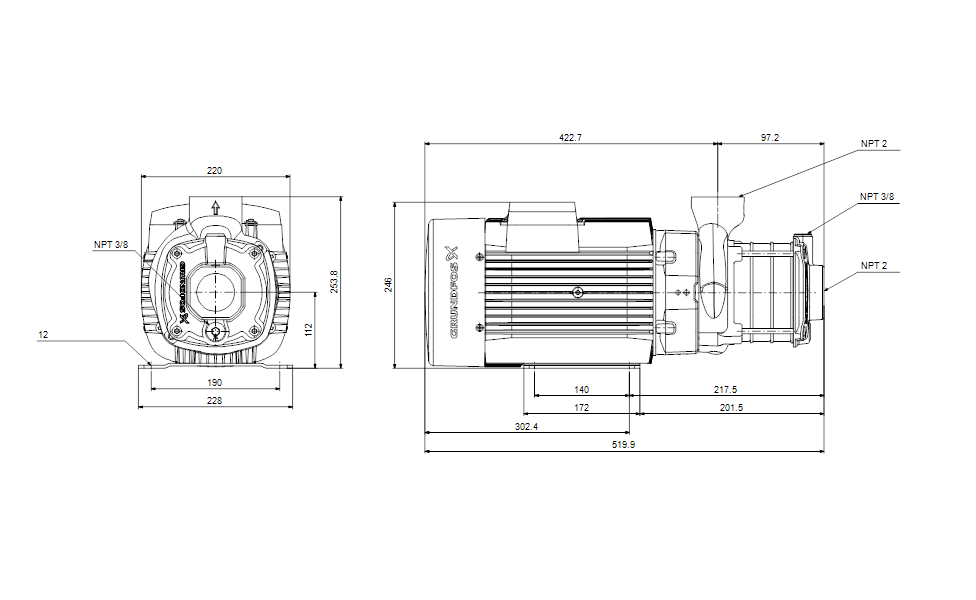

Dimensional Drawing

DWiring Diagram
